4135 vs 4140 Steel: A Comprehensive Comparison

4135 vs 4140 Steel: A Comprehensive Comparison4135 vs 4140 Steel: A Comprehensive Comparison

🔍 Introduction

Both 4135 steel and 4140 steel are popular low-alloy steels commonly used in the automotive, manufacturing, and engineering industries. These two grades share many similarities but also exhibit distinct differences in composition, mechanical properties, and applications. Understanding these differences is crucial when choosing the appropriate material for specific engineering and manufacturing tasks.

In this article, we will compare 4135 steel with 4140 steel in terms of chemical composition, hardness, yield strength, heat treatment, and applications, providing a clear guide to help you make the right decision for your projects.

⚙️ Chemical Composition of 4135 vs 4140 Steel

The chemical composition of both 4135 and 4140 steels is similar, but with slight variations that influence their properties. Both grades belong to the same family of low-alloy steels and contain carbon, chromium, and manganese, but 4140 steel generally has a slightly higher carbon content.

1. 4135 Steel Composition:

  • Carbon (C): 0.30–0.38%
  • Chromium (Cr): 0.80–1.10%
  • Manganese (Mn): 0.60–0.90%
  • Molybdenum (Mo): 0.15–0.25%
  • Silicon (Si): 0.10–0.35%
  • Sulfur (S): ≤ 0.035%
  • Phosphorus (P): ≤ 0.035%

2. 4140 Steel Composition:

  • Carbon (C): 0.38–0.43%
  • Chromium (Cr): 0.80–1.10%
  • Manganese (Mn): 0.75–1.00%
  • Molybdenum (Mo): 0.15–0.25%
  • Silicon (Si): 0.10–0.35%
  • Sulfur (S): ≤ 0.035%
  • Phosphorus (P): ≤ 0.035%

Key Differences:

  • 4140 steel has a higher carbon content compared to 4135 steel, which contributes to its increased hardness and strength after heat treatment.
  • Both steels contain similar amounts of chromium and molybdenum, elements that enhance hardenability and resistance to wear.

📊 Hardness and Strength Comparison

When comparing the hardness and strength of 4135 steel and 4140 steel, 4140 steel generally shows better performance, especially after heat treatment.

Property 4135 Steel 4140 Steel
Hardness (HRC) 28–32 HRC (heat treated) 28–36 HRC (heat treated)
Yield Strength 570–700 MPa 640–850 MPa
Tensile Strength 850–1000 MPa 930–1200 MPa

Insights:

  • 4140 steel exhibits higher yield strength and tensile strength compared to 4135 steel, which makes it more suitable for heavy-duty applications and components that require superior strength and resistance to deformation.
  • 4135 steel, while slightly lower in strength, is still a good choice for applications that don’t require the maximum strength that 4140 steel offers.

🔥 Heat Treatment of 4135 vs 4140 Steel

Both 4135 and 4140 steels respond well to heat treatment, improving their mechanical properties such as hardness and strength. However, 4140 steel tends to achieve higher hardness levels than 4135 steel after heat treatment due to its slightly higher carbon content.

1. 4135 Steel Heat Treatment:

  • Annealing: 4135 steel is usually annealed at a temperature of around 850°C to 900°C and then cooled slowly to reduce hardness and improve machinability.
  • Hardening: 4135 can be hardened by heating to 850°C to 880°C followed by quenching in oil or water.
  • Tempering: After hardening, 4135 is tempered to achieve desired hardness and improve toughness, typically at 400°C to 600°C.

2. 4140 Steel Heat Treatment:

  • Annealing: For 4140 steel, the annealing process is similar to 4135, but it can achieve higher strength due to its higher carbon content.
  • Hardening: 4140 steel is hardened by heating it to 850°C to 880°C and quenching it in water or oil, yielding higher hardness.
  • Tempering: 4140 is tempered at higher temperatures (typically 400°C to 700°C) to balance hardness and toughness, providing better mechanical properties.

Key Insight:

Due to the higher carbon content in 4140 steel, it generally requires higher temperatures for heat treatment but results in superior hardness, strength, and overall mechanical performance.

🏭 Applications of 4135 vs 4140 Steel

Both 4135 and 4140 steels are used in a variety of industries, but the choice between them depends on the specific mechanical properties required for the application.

4135 Steel Applications:

  • Automotive components: Often used in parts like gears, shafts, and axles that require moderate strength and wear resistance.
  • Forged parts: 4135 steel is commonly used in forged components in the manufacturing industry.

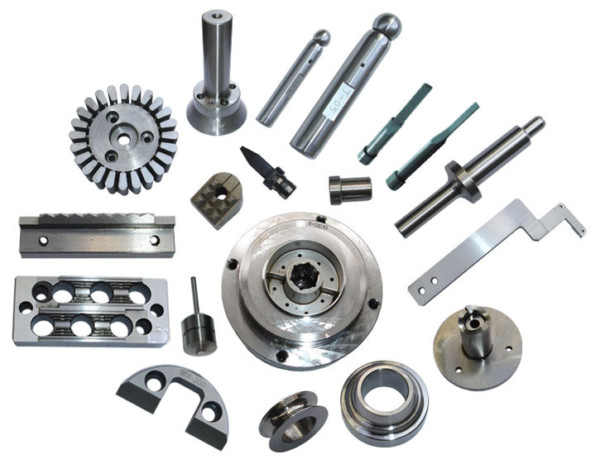

  • Machine parts: Suitable for machine components that don’t require extreme strength but benefit from good toughness and wear resistance.

4140 Steel Applications:

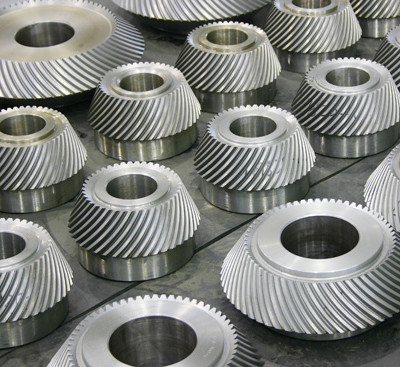

  • High-performance gears: Due to its superior strength and hardness, 4140 is ideal for gears and bearings in high-load conditions.
  • Heavy-duty shafts: 4140 is commonly used for shafts, spindles, and other components that require enhanced strength and fatigue resistance.
  • Tooling and structural components: 4140 finds applications in structural components subjected to high stress, as well as in tooling for heavy machinery.

Insights:

  • 4140 steel is generally the material of choice for heavy-duty applications requiring superior strength, while 4135 steel is used in moderate load applications where cost and machinability are more critical.

🏆 Company Advantages

At Otai Special Steel, we provide both 4135 and 4140 steels with tailored solutions to meet your specific engineering needs:

  • Large Inventory: We maintain an extensive stock of over 10,000 tons of 4135 and 4140 steels, available year-round.
  • Precision Cutting and Heat Treatment: Our services include customized cutting and heat treatment to meet the exact specifications for your application.
  • Global Supply: We deliver 4135 and 4140 to industries worldwide, ensuring timely and reliable supply.
  • Strict Quality Control: Our materials undergo ultrasonic testing (UT), chemical analysis, and third-party inspections (SGS) to ensure the highest quality.

❓ FAQ

1. What is the main difference between 4135 and 4140 steel?

The primary difference is the carbon content. 4140 steel has a higher carbon content, which results in superior strength and hardness compared to 4135 steel.

2. Which steel is stronger, 4135 or 4140?

4140 steel is stronger than 4135. It has a higher yield strength and tensile strength, making it more suitable for high-load applications.

3. Can 4135 replace 4140 in all applications?

While 4135 can handle moderate stress and load, 4140 is better suited for heavy-duty applications that require higher strength and durability.

4. How do the heat treatments compare for 4135 and 4140?

Both steels respond well to heat treatment, but 4140 achieves higher hardness and strength due to its higher carbon content. 4135 is easier to machine but has lower strength after heat treatment.

5. What are the best applications for 4135 steel?

4135 is ideal for automotive parts, machine components, and forged parts where moderate strength and wear resistance are sufficient.

Jack Tan



📧 jack@otaisteel.com

📱 WhatsApp: +8676923190193

0 0 Continue Reading →
4140 Steel vs 1095: Composition, Properties, Applications, and Differences

By

in

Blog

Posted

April 22, 2026 at 8:51 am

4140 Steel vs 1095: Composition, Properties, Applications, and Differences

4140 Steel vs 1095: Composition, Properties, Applications, and Differences4140 Steel vs 1095: Composition, Properties, Applications, and Differences

🔍 Introduction

When comparing 4140 steel vs 1095 steel, it’s essential to understand the distinct characteristics of these two materials. Both are popular carbon steels, but they differ significantly in terms of composition, mechanical properties, and applications. This comparison helps engineers, manufacturers, and designers choose the right steel based on their needs.

In this article, we will explore the composition and properties of 4140 and 1095 steels, compare their hardness, strength, and heat treatment processes, and examine their applications and advantages.

⚙️ Composition and Properties of 4140 and 1095 Steel

The composition of 4140 steel vs 1095 steel is one of the primary factors that define their properties and suitability for various applications.

1. 4140 Steel Composition:

  • Carbon (C): 0.38–0.43%
  • Chromium (Cr): 0.80–1.10%
  • Molybdenum (Mo): 0.15–0.25%
  • Manganese (Mn): 0.60–0.90%
  • Silicon (Si): 0.20–0.35%

4140 steel is an alloy steel that contains significant amounts of chromium and molybdenum, which enhance its strength, hardenability, and toughness.

2. 1095 Steel Composition:

  • Carbon (C): 0.90–1.03%
  • Manganese (Mn): 0.30–0.50%
  • Silicon (Si): 0.15–0.30%

1095 steel is a high-carbon steel known for its hardness and edge retention. It contains a higher percentage of carbon than 4140, making it harder but also more brittle.

📊 Hardness and Strength Comparison

The 4140 steel vs 1095 steel hardness and strength comparison shows distinct differences in how these steels perform under stress.

Property 4140 Steel 1095 Steel
Carbon Content 0.38–0.43% 0.90–1.03%
Yield Strength 600–850 MPa 400–550 MPa
Tensile Strength 900–1100 MPa 800–1000 MPa
Hardness (HRC) 28–50 HRC (heat treated) 55–65 HRC (after heat treatment)

Insight:

  • 4140 steel offers moderate strength with better toughness, making it suitable for heavy-duty applications.
  • 1095 steel, with its higher carbon content, is harder but less tough, making it ideal for tools that need sharp edges, like knives or cutting tools.

🔥 Heat Treatment Differences

Both 4140 steel vs 1095 steel heat treatment processes are important to modify their mechanical properties, but they differ due to their compositions.

1. Heat Treatment for 4140 Steel:

  • Quenching and Tempering: 4140 steel is often heat-treated through quenching (heating and rapid cooling) followed by tempering (reheating to a lower temperature) to achieve a hardness range of 28–50 HRC. This process gives it a good balance of strength, hardness, and toughness.

2. Heat Treatment for 1095 Steel:

  • Carburizing and Quenching: 1095 steel is heat-treated by carburizing (adding carbon to the surface) followed by quenching. This produces a high hardness of 55–65 HRC, which makes it very hard but also more brittle than 4140 steel.

🏭 Applications of 4140 and 1095 Steel

The applications of 4140 vs 1095 steel are influenced by their mechanical properties and heat treatment.

Applications of 4140 Steel:

  • Automotive components: Gears, shafts, and axles
  • Machine parts: Heavy-duty tools and structural components

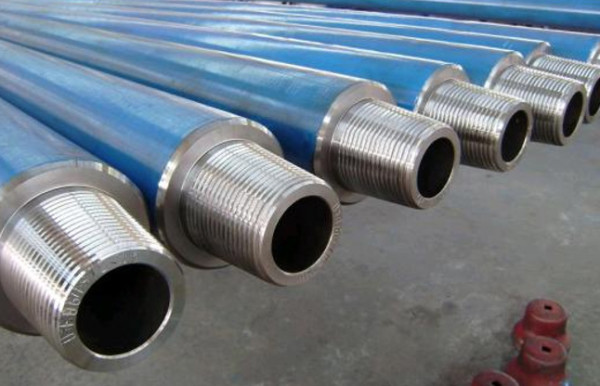

  • Oil & gas industry: Drilling tools and rigs
  • Aerospace: Aircraft components and fasteners

4140 steel is favored for its strength, toughness, and wear resistance, making it a great choice for components subjected to high mechanical stress.

Applications of 1095 Steel:

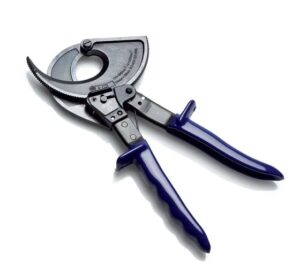

  • Cutting tools: Knives, scissors, and blades
  • Industrial tools: Dies, punches, and chisels
  • Spring manufacturing: Used in making high-carbon springs
  • Sharpened tools: Razor blades and edge tools

1095 steel is perfect for high-carbon applications where sharpness and edge retention are critical, but its brittleness limits its use in high-impact or heavy-load situations.

🛠️ Machining and Processing

Machining 4140 vs 1095 steel presents different challenges due to their hardness.

1. Machining 4140 Steel:

  • Easier to machine in its annealed state, but requires special tools when hardened.
  • The lower carbon content makes it more forgiving during machining processes like drilling, milling, and turning.

2. Machining 1095 Steel:

  • More difficult to machine due to its higher carbon content and hardness after heat treatment.
  • Requires carbide tools and slower speeds to prevent tool wear.

🔬 Key Differences Between 4140 Steel and 1095 Steel

To summarize the differences between 4140 steel and 1095 steel, here’s a quick comparison:

Property 4140 Steel 1095 Steel
Carbon Content Moderate (0.38–0.43%) High (0.90–1.03%)
Hardness (HRC) 28–50 HRC (heat treated) 55–65 HRC (heat treated)
Tensile Strength Higher (900–1100 MPa) Moderate (800–1000 MPa)
Toughness High Low (brittle)
Machinability Moderate (easier to machine) Difficult (harder to machine)
Applications Heavy-duty machinery, automotive parts Cutting tools, knives, springs

Insight:

  • 4140 steel is ideal for heavy-duty applications requiring a balance of strength and toughness.
  • 1095 steel is better suited for applications that require sharpness, wear resistance, and edge retention.

🏆 Company Advantages

At Otai Special Steel, we offer high-quality 4140 steel with tailored solutions for your projects:

  • Over 10,000 tons of inventory available year-round
  • Full size range from 6mm to 300mm
  • Precision cutting and customized heat treatment services
  • Strict quality control including ultrasonic testing (UT) and chemical analysis
  • Support for third-party inspections such as SGS
  • Extensive experience supplying global industrial clients

We ensure your materials meet exacting standards for performance, strength, and durability.

❓ FAQ

1. Which is stronger, 4140 steel or 1095 steel?

4140 steel has higher tensile strength and better toughness, making it stronger overall. 1095 steel is harder but more brittle.

2. Can 4140 steel be used for tools like 1095 steel?

4140 steel can be used for tools, but 1095 steel is preferred for cutting tools that require high hardness and edge retention.

3. What makes 4140 steel more versatile than 1095?

4140 steel is tougher, which makes it suitable for heavy-duty industrial applications, while 1095 steel is more brittle and better suited for high-carbon, sharp-edged tools.

4. Is 1095 steel harder than 4140?

Yes, 1095 steel can achieve a higher hardness level after heat treatment, making it ideal for tools that need to maintain sharpness.

5. What are the best uses for 4140 steel?

Best used in machinery, automotive parts, and aerospace components where strength, toughness, and fatigue resistance are crucial.

0 0 Continue Reading →
4140 Steel Heat Treated to RC 25-32: Properties, Applications, and Benefits

By

in

Blog

Posted

April 22, 2026 at 1:57 am

4140 Steel Heat Treated to RC 25-32: Properties, Applications, and Benefits

4140 Steel Heat Treated to RC 25-32: Properties, Applications, and Benefits4140 Steel Heat Treated to RC 25-32: Properties, Applications, and Benefits

🔍 Introduction

4140 steel heat treated to RC 25-32 is a popular condition for this alloy steel that balances toughness and strength. The RC scale (Rockwell C) measures hardness, and achieving this range in 4140 steel ensures a material with suitable hardness for heavy-duty applications while maintaining good impact resistance.

In this article, we’ll explore the 4140 steel heat treatment process for RC 25-32, how to achieve this hardness, the benefits, and its various industrial applications.

⚙️ What Is RC 25-32 Hardness in 4140 Steel?

When 4140 steel is heat treated to RC 25-32, it means that the steel has been subjected to a heat treatment process that results in a Rockwell hardness of between 25 and 32 HRC. This range provides a good balance between hardness and ductility, making it ideal for parts that need strength without being brittle.

Hardness Explanation:

  • RC 25-32 → Moderate hardness range
  • Achieved through tempering after quenching

The resulting material is harder than annealed steel but still tough enough for heavy-duty applications.

🔥 Heat Treatment Process for Achieving RC 25-32

The 4140 steel heat treatment process for RC 25-32 involves two primary steps: quenching and tempering.

1. Quenching:

  • Heat the steel to a high temperature (around 830–860°C).
  • Rapidly cool the material, typically in oil or water.
  • This step hardens the steel, increasing its strength.

2. Tempering:

  • After quenching, the steel is reheated to a lower temperature (around 550–650°C).
  • This step relieves internal stresses and increases toughness.
  • The result is a Rockwell hardness in the range of 25-32.

By adjusting the tempering temperature, manufacturers can control the final hardness level to suit specific applications.

📊 Mechanical Properties of 4140 Steel at RC 25-32

The 4140 steel mechanical properties at RC 25-32 reflect a balanced performance profile, suitable for medium-to-heavy-duty applications.

Property Value at RC 25-32
Hardness (HRC) 25-32 HRC
Tensile Strength 900–1100 MPa
Yield Strength 600–850 MPa
Impact Toughness Good (compared to higher hardness grades)
Ductility Moderate to good

Insight:

At RC 25-32, 4140 steel provides a good balance of strength, hardness, and toughness, making it suitable for parts that require both wear resistance and impact resistance.

🏭 Applications of 4140 Steel at RC 25-32

The 4140 steel applications with RC 25-32 hardness are numerous in industries that require durable components but do not need the extreme hardness associated with higher Rockwell C values.

Common Uses:

  • Gear shafts: Suitable for high-load applications.

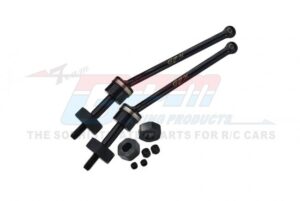

  • Axles and spindles: Heavy-duty automotive components.
  • Crankshafts: High strength with impact resistance.
  • Industrial machinery: Parts that experience both stress and wear.

The RC 25-32 hardness range provides adequate wear resistance while maintaining good shock absorption, which is vital in machinery subjected to dynamic forces.

🔬 Comparison of 4140 Steel at Different Hardness Levels

When considering 4140 steel RC 25-32 vs other hardness levels, the key difference is how each treatment affects the steel’s performance. Here’s a comparison:

Hardness Level (HRC) Applications Characteristics
RC 25-32 Gears, shafts, automotive parts Good strength, moderate toughness
RC 35-40 High-performance components, tools Harder, lower impact resistance
RC 45-50 Cutting tools, molds, wear parts Very hard, brittle, wear-resistant
Annealed (RC 10-20) Structural components, large weldments Soft, easy to machine

Conclusion:

RC 25-32 provides a balanced mix of hardness and toughness, making it the most versatile choice for various mechanical components.

🛠️ Benefits of 4140 Steel Heat Treated to RC 25-32

The benefits of 4140 steel heat treated to RC 25-32 include:

  • Increased wear resistance: The steel can withstand moderate to high wear conditions.
  • Enhanced toughness: Retains good impact resistance, ideal for machinery components.
  • Good machinability: Easier to machine compared to higher hardness grades, which is crucial in complex manufacturing processes.
  • Versatility: Works well in both low and high-stress applications, providing flexibility across industries.

Insight:

The heat treatment process enhances mechanical properties, making 4140 steel at RC 25-32 an ideal material for parts that require both durability and toughness.

⚖️ Comparison of Benefits at Different Hardness Levels

Here’s a comparison of the 4140 steel hardness levels and the trade-offs:

Hardness Level (HRC) Benefits Trade-offs
RC 25-32 Good toughness and strength Moderate wear resistance
RC 35-40 Higher strength and wear resistance Reduced toughness
RC 45-50 Very high wear resistance Brittle, less tough
Annealed Very easy to machine Lower strength and wear resistance

Conclusion:

RC 25-32 provides a middle ground, offering durability and performance without being too brittle or difficult to machine.

🏆 Company Advantages

At Otai Special Steel, we offer 4140 steel heat treated to RC 25-32 with superior quality:

  • Over 10,000 tons of inventory available year-round
  • Full size range from 6mm to 300mm
  • Precision cutting and customized heat treatment services
  • Strict quality control including ultrasonic testing (UT) and chemical analysis
  • Support for third-party inspections such as SGS
  • Extensive experience supplying global industrial clients

We ensure your materials meet exacting standards for performance, strength, and durability.

❓ FAQ

1. What is RC 25-32 hardness in 4140 steel?

It refers to a moderate hardness level achieved through heat treatment, balancing strength and toughness.

2. How is RC 25-32 achieved?

Through a combination of quenching and tempering processes.

3. What is 4140 steel commonly used for at RC 25-32?

It is commonly used for gears, shafts, axles, and other machinery parts.

4. Can 4140 steel at RC 25-32 be easily machined?

Yes, it offers better machinability compared to higher hardness levels.

5. Why choose RC 25-32 over higher hardness levels?

It provides a good mix of wear resistance and impact resistance without becoming too brittle.

0 0 Continue Reading →
5/8 4140 Steel Plate: Properties, Performance, and Practical Applications

By

in

Blog

Posted

April 21, 2026 at 4:57 am

5/8 4140 Steel Plate: Properties, Performance, and Practical Applications

5/8 4140 Steel Plate: Properties, Performance, and Practical Applications5/8 4140 Steel Plate: Properties, Performance, and Practical Applications

🔍 Introduction

The 5/8 4140 steel plate is a widely used thickness in industrial applications where strength, toughness, and reliability are essential. This medium-thickness plate offers an excellent balance between structural rigidity and machinability, making it ideal for a wide range of engineering components.

In this article, we explore 5/8 4140 steel plate properties and specifications, including mechanical performance, heat treatment options, machining considerations, and typical applications.

⚙️ Overview of 5/8 Inch 4140 Steel Plate

A 5/8 inch 4140 steel plate refers to a plate with a thickness of approximately 15.875 mm made from chromium-molybdenum alloy steel. This thickness is commonly used because it provides sufficient strength without excessive weight.

Key Features:

  • High strength and toughness
  • Good wear resistance
  • Excellent heat treatment response
  • Versatile for machining and fabrication

This combination makes it suitable for demanding structural applications.

📊 Mechanical Properties and Strength

The 5/8 inch 4140 steel plate hardness and strength depend on the condition of supply.

Condition Yield Strength (MPa) Tensile Strength (MPa) Hardness
Annealed 415–620 650–850 ~20 HRC
Normalized 500–750 700–950 20–30 HRC
Quenched & Tempered 650–900 850–1100 28–50 HRC

Insight:

Heat treatment significantly enhances performance, especially for load-bearing applications.

🔥 Heat Treatment Options

The 5/8 4140 steel plate heat treatment options allow customization based on application needs.

Common Processes:

  • Normalizing → improves uniformity
  • Quenching → increases hardness
  • Tempering → enhances toughness

Result:

  • Balanced strength and ductility
  • Improved fatigue resistance
  • Better wear performance

Proper treatment ensures optimal results.

⚖️ Weight and Dimensions

Understanding the 5/8 4140 steel plate weight and dimensions is important for design and logistics.

Approximate Weight:

  • Thickness: 5/8 inch (15.875 mm)
  • Weight: ~49 kg/m²
Plate Size Approximate Weight
1 m² ~49 kg
2 m² ~98 kg
5 m² ~245 kg

Insight:

Weight increases linearly with surface area.

🛠️ Machining and Cutting

The 5/8 4140 steel plate machining and cutting process is efficient in the annealed or normalized condition.

Machining Tips:

  • Use carbide tools for better performance
  • Apply proper cutting speeds
  • Avoid machining after hardening if possible

Cutting Methods:

  • Plasma cutting
  • Laser cutting
  • Saw cutting

Proper techniques improve surface quality and reduce tool wear.

🏭 Applications of 5/8 Thick Plates

The 5/8 thick 4140 steel plate applications are diverse.

Common Uses:

  • Machinery base plates
  • Structural supports
  • Mold bases
  • Heavy equipment components

This thickness is ideal for medium-duty structural applications.

🔬 Comparison with Other Thicknesses

The 5/8 4140 steel plate vs other thickness comparison helps in selection.

Thickness Advantage Typical Use
1/2 inch Lighter Light structures
5/8 inch Balanced General engineering
1 inch Stronger Heavy-duty components

Conclusion:

5/8 inch offers an excellent balance of strength and weight.

📏 Tolerance and Standards

The 5/8 4140 steel plate tolerance and standards ensure consistency.

Standards:

  • ASTM A829
  • EN 10083 (42CrMo4 equivalent)

Tolerances:

  • Thickness tolerance depends on rolling standard
  • Flatness and surface quality controlled during production

Insight:

Strict standards ensure reliable performance.

🧭 Supply and Availability

The 5/8 4140 steel plate supplier and stock availability is generally stable due to high demand.

Key Points:

  • Available in various sizes
  • Custom cutting services common
  • Heat-treated options available

Working with reliable suppliers ensures consistent quality.

⚠️ Common Mistakes in Usage

  1. Ignoring heat treatment condition
  2. Underestimating weight impact
  3. Machining after hardening
  4. Not considering tolerance requirements

Avoiding these improves efficiency and performance.

🏆 Company Advantages

At Otai Special Steel, we supply high-quality 4140 steel plates in various thicknesses:

  • Over 10,000 tons of inventory available year-round
  • Full size range from 6mm to 300mm
  • Precision cutting and customized heat treatment services
  • Strict quality control including ultrasonic testing (UT) and chemical analysis
  • Support for third-party inspections such as SGS
  • Extensive experience supplying global industrial clients

We ensure reliable supply and consistent quality for your projects.

❓ FAQ

1. What is the thickness of a 5/8 steel plate in mm?

Approximately 15.875 mm.

2. Is 5/8 4140 plate strong?

Yes, especially after heat treatment.

3. Can it be machined easily?

Yes, particularly in annealed condition.

4. What industries use this thickness?

Machinery, construction, and heavy equipment industries.

5. Is heat treatment necessary?

It depends on the application, but it significantly improves performance.

0 0 Continue Reading →
4140 Steel Data Sheet: Composition, Properties, and Engineering Specifications

By

in

Blog

Posted

April 20, 2026 at 8:29 am

4140 Steel Data Sheet: Composition, Properties, and Engineering Specifications

4140 Steel Data Sheet: Composition, Properties, and Engineering Specifications

🔍 Introduction

A complete 4140 steel data sheet is essential for engineers, buyers, and manufacturers who need accurate material information for design and production. Known for its excellent strength, toughness, and versatility, 4140 alloy steel is widely used across industries such as automotive, oil & gas, and heavy machinery.

This article provides a detailed overview of 4140 steel sheet properties and specifications, including chemical composition, mechanical performance, heat treatment guidelines, and practical applications.

⚙️ Overview of 4140 Steel

4140 is a chromium-molybdenum alloy steel designed for high strength and good hardenability. It performs well under both static and dynamic loads.

Key Characteristics:

  • Medium carbon alloy steel
  • High fatigue strength
  • Good wear resistance
  • Excellent heat treatment response

These features make it suitable for demanding engineering environments.

🧪 4140 Steel Chemical Composition Data Sheet

The 4140 steel chemical composition data defines its core performance.

Element Content (%)
Carbon (C) 0.38–0.43
Chromium (Cr) 0.8–1.1
Molybdenum (Mo) 0.15–0.25
Manganese (Mn) 0.75–1.0
Silicon (Si) 0.15–0.35
Phosphorus (P) ≤0.035
Sulfur (S) ≤0.040

Insight:

  • Chromium improves hardness and wear resistance
  • Molybdenum enhances strength and toughness
  • Carbon controls hardness potential

📊 4140 Steel Mechanical Properties Data Sheet

The 4140 steel mechanical properties data sheet varies depending on heat treatment.

Property Typical Range
Tensile Strength 850–1100 MPa
Yield Strength 650–900 MPa
Hardness 28–50 HRC
Elongation 12–25%
Impact Toughness High

These values make it suitable for high-load applications.

🔥 4140 Steel Heat Treatment Data Sheet

The 4140 steel heat treatment data sheet outlines key processing steps.

Typical Heat Treatment Process:

  1. Austenitizing: 830–870°C
  2. Quenching: oil cooling
  3. Tempering: 200–650°C

Results:

  • Increased strength
  • Improved toughness
  • Controlled hardness

Proper heat treatment is essential for achieving optimal performance.

🌡️ 4140 Steel Physical Properties Data Sheet

The 4140 steel physical properties data sheet includes:

Property Value
Density 7.85 g/cm³
Elastic Modulus ~210 GPa
Thermal Conductivity ~42 W/m·K
Thermal Expansion 12 × 10⁻⁶ /°C

These properties influence thermal and structural behavior in service.

⚖️ Hardness and Strength Relationship

The 4140 steel hardness and strength data sheet shows:

  • Higher hardness → increased wear resistance
  • Lower hardness → improved ductility

Example:

  • 50 HRC → maximum strength
  • 30 HRC → balanced properties

Selecting the right hardness depends on application requirements.

🔄 4140 Steel Equivalent Grades Data Sheet

The 4140 steel equivalent grades data sheet helps with global sourcing.

Standard Grade
AISI/SAE 4140
EN 42CrMo4 (1.7225)
DIN 1.7225
JIS SCM440
GB 42CrMo

These equivalents ensure compatibility across different standards.

🏭 Applications and Practical Use

The 4140 steel applications and properties overview shows its versatility.

Common Applications:

  • Shafts and axles
  • Gears and crankshafts
  • Oilfield equipment
  • Heavy-duty fasteners

Its strength and fatigue resistance make it ideal for critical components.

🧭 Design Considerations

When using data from a 4140 steel data sheet, consider:

  1. Required mechanical properties
  2. Heat treatment condition
  3. Operating environment
  4. Safety factors

Practical Tip:

Always verify material certification before use.

⚠️ Common Mistakes

  1. Ignoring heat treatment condition
  2. Using incorrect property values
  3. Overlooking standard differences
  4. Not applying safety factors

Avoiding these improves reliability and performance.

🏆 Company Advantages

At Otai Special Steel, we provide reliable 4140 steel with full technical support:

  • Over 10,000 tons of inventory available year-round
  • Full size range from 6mm to 300mm
  • Precision cutting and customized heat treatment services
  • Strict quality control including ultrasonic testing (UT) and chemical analysis
  • Support for third-party inspections such as SGS
  • Extensive experience supplying global industrial clients

We ensure consistent quality and fast delivery for your projects.

❓ FAQ

1. What is included in a 4140 steel data sheet?

It includes composition, mechanical properties, heat treatment, and physical properties.

2. Does the data sheet change with heat treatment?

Yes, mechanical properties vary significantly.

3. What is the hardness range of 4140 steel?

Typically between 28 and 50 HRC.

4. Are there international equivalents?

Yes, such as 42CrMo4 and SCM440.

5. Why is a data sheet important?

It ensures correct material selection and safe engineering design.

0 0 Continue Reading →
What Is the Difference Between 4140 and 5140 Steel?

By

in

Blog

Posted

April 20, 2026 at 1:47 am

What Is the Difference Between 4140 and 5140 Steel?

What Is the Difference Between 4140 and 5140 Steel?What Is the Difference Between 4140 and 5140 Steel: Composition, Properties, and Applications

🔍 Introduction

Understanding what is the difference between 4140 and 5140 steel is essential for engineers and buyers selecting the right alloy for strength, toughness, and cost efficiency. Both are medium-carbon alloy steels, but their alloying elements and performance characteristics differ significantly.

This article provides a clear and practical comparison, covering composition, mechanical properties, heat treatment behavior, and real-world applications.

⚙️ Overview of 4140 and 5140 Steel

Both materials belong to the AISI alloy steel family and are widely used in mechanical engineering.

4140 Steel:

  • Chromium-molybdenum alloy steel
  • Excellent strength and toughness
  • Good hardenability

5140 Steel:

  • Chromium alloy steel (no molybdenum)
  • Moderate strength
  • Good wear resistance

The presence or absence of molybdenum is the key difference.

🧪 Chemical Composition Comparison

The difference between 4140 and 5140 steel composition directly affects performance.

Element 4140 (%) 5140 (%)
Carbon (C) 0.38–0.43 0.38–0.43
Chromium (Cr) 0.8–1.1 0.7–0.9
Molybdenum (Mo) 0.15–0.25 —
Manganese (Mn) 0.75–1.0 0.7–0.9

Insight:

  • 4140 contains molybdenum → better strength and heat resistance
  • 5140 lacks molybdenum → lower hardenability

📊 Mechanical Properties Comparison

The 4140 vs 5140 steel strength comparison highlights key differences.

Property 4140 Steel 5140 Steel
Tensile Strength 850–1100 MPa 700–950 MPa
Yield Strength 650–900 MPa 500–750 MPa
Hardness (HRC) 28–50 25–45
Toughness High Moderate

Conclusion:

4140 generally offers superior strength and toughness.

🔥 Heat Treatment Differences

The 4140 vs 5140 heat treatment differences are important in performance.

4140 Steel:

  • Better response to quenching and tempering
  • Deeper hardening capability
  • More uniform properties

5140 Steel:

  • Shallower hardening depth
  • Less stable at high temperatures

Insight:

4140 performs better in demanding heat-treated applications.

⚖️ Hardness and Toughness Comparison

The 4140 vs 5140 hardness and toughness comparison shows:

  • 4140 → higher toughness and fatigue resistance
  • 5140 → adequate hardness but lower impact resistance

This makes 4140 more suitable for high-stress environments.

🛠️ Machinability and Weldability

The 4140 vs 5140 machinability and weldability comparison:

Machinability:

  • Both steels machine well in annealed condition
  • 5140 is slightly easier to machine

Weldability:

  • 4140 requires preheating and post-weld treatment
  • 5140 has similar welding requirements but slightly lower cracking risk

Practical Tip:

Use controlled welding procedures for both materials.

🏭 Applications of 4140 and 5140 Steel

The applications of 4140 and 5140 steel vary based on performance needs.

4140 Steel Applications:

  • Heavy-duty shafts
  • Gears and crankshafts
  • Oil and gas equipment
  • High-strength bolts

5140 Steel Applications:

  • Automotive components
  • Medium-load shafts
  • General machinery parts

Conclusion:

4140 is preferred for high-performance applications.

🧭 Which Is Better: 4140 or 5140 Steel?

The question which is better 4140 or 5140 steel depends on application.

Choose 4140 when:

  • High strength is required
  • Fatigue resistance is critical
  • Heat treatment performance matters

Choose 5140 when:

  • Cost is a concern
  • Moderate strength is sufficient
  • Machinability is prioritized

🔄 Equivalent Grades

The 4140 and 5140 steel equivalent grades help in global sourcing.

Grade Equivalent
4140 42CrMo4 (EN), SCM440 (JIS)
5140 41Cr4 (EN), SCr440 (JIS)

These equivalents provide similar performance across standards.

⚠️ Common Mistakes in Material Selection

  1. Ignoring alloy composition differences
  2. Selecting based on cost alone
  3. Overlooking heat treatment requirements
  4. Not considering fatigue performance

Avoiding these ensures better material selection.

🏆 Company Advantages

At Otai Special Steel, we supply both 4140 and 5140 steel with consistent quality:

  • Over 10,000 tons of inventory available year-round
  • Full size range from 6mm to 300mm
  • Precision cutting and customized heat treatment services
  • Strict quality control including ultrasonic testing (UT) and chemical analysis
  • Support for third-party inspections such as SGS
  • Extensive experience supplying global industrial clients

We help customers choose the right material for optimal performance.

❓ FAQ

1. What is the main difference between 4140 and 5140 steel?

4140 contains molybdenum, giving it better strength and hardenability.

2. Which steel is stronger?

4140 steel is generally stronger and tougher.

3. Is 5140 cheaper than 4140?

Yes, due to simpler composition.

4. Can 5140 replace 4140?

Only in less demanding applications.

5. Which is better for high-stress applications?

4140 is the better choice due to superior performance.

0 0 Continue Reading →
4140 Steel Yield Strength (MPa): Key Values, Heat Treatment Effects, and Engineering Insights

By

in

Blog

Posted

April 17, 2026 at 4:15 am

4140 Steel Yield Strength (MPa): Key Values, Heat Treatment Effects, and Engineering Insights

4140 Steel Yield Strength (MPa): Key Values, Heat Treatment Effects, and Engineering Insights4140 Steel Yield Strength (MPa): Key Values, Heat Treatment Effects, and Engineering Insights

🔍 Introduction

The 4140 steel yield strength MPa is a crucial parameter for engineers designing components that must withstand high loads without permanent deformation. Known for its excellent balance of strength, toughness, and hardenability, 4140 alloy steel is widely used in demanding applications such as shafts, gears, and structural parts.

This article explains what is the yield strength of 4140 steel in MPa, how it varies under different heat treatment conditions, and how engineers can use this data in real-world design.

⚙️ What Is Yield Strength in 4140 Steel?

Yield strength is the stress level at which a material begins to deform plastically. For 4140 steel, this property determines how much load a component can handle before permanent deformation occurs.

Key Insight:

  • Below yield strength → elastic behavior (returns to original shape)
  • Above yield strength → permanent deformation

This makes yield strength one of the most important mechanical properties in design.

📊 Typical Yield Strength Values in MPa

The typical yield strength range of 4140 steel MPa depends on its condition.

Condition Yield Strength (MPa) Tensile Strength (MPa)
Annealed 415–620 MPa 650–850 MPa
Normalized 500–750 MPa 700–950 MPa
Quenched & Tempered 650–900 MPa 850–1100 MPa

These values form the basis of the 4140 steel mechanical properties table MPa used in engineering calculations.

🔥 Yield Strength After Heat Treatment

The 4140 steel yield strength after heat treatment MPa increases significantly compared to the annealed state.

Observations:

  • Annealed → lowest strength, best machinability
  • Normalized → moderate strength and toughness
  • Quenched & tempered → highest strength and performance

Practical Insight:

Heat treatment allows engineers to tailor material properties for specific applications.

⚖️ Yield Strength vs Tensile Strength

Understanding 4140 steel yield strength vs tensile strength MPa is essential.

Property Typical Range
Yield Strength 650–900 MPa
Tensile Strength 850–1100 MPa

Relationship:

  • Yield strength defines safe working limits
  • Tensile strength defines maximum load capacity

Designs are typically based on yield strength with safety factors applied.

🔬 Normalized vs Quenched and Tempered Conditions

The normalized 4140 steel yield strength MPa is lower than the quenched and tempered condition.

Comparison:

Condition Yield Strength Characteristics
Normalized 500–750 MPa Balanced properties
Quenched & Tempered 650–900 MPa High strength and toughness

Insight:

For high-load applications, quenched and tempered material is preferred.

🧪 Factors Affecting Yield Strength

Several factors affecting 4140 steel yield strength MPa must be considered:

1. Heat Treatment

The most significant factor influencing strength

2. Chemical Composition

Alloying elements improve hardenability

3. Cooling Rate

Faster cooling generally increases strength

4. Grain Size

Finer grains improve yield strength

5. Manufacturing Process

Forging and rolling can enhance properties

🏭 Comparison with Other Steels

The 4140 steel yield strength comparison with other steels provides context.

Steel Grade Yield Strength (MPa) Application
4140 650–900 High-strength components
1045 350–550 General engineering
1018 300–400 Low-strength applications

Conclusion:

4140 steel offers significantly higher strength than plain carbon steels.

🧭 Engineering Applications

The 4140 steel yield strength MPa values in different conditions make it suitable for:

Common Applications:

  • Drive shafts
  • Gears and crankshafts
  • Oil and gas components
  • Heavy machinery parts

Its high strength ensures reliability under load.

⚠️ Common Mistakes in Design

  1. Ignoring heat treatment condition
  2. Using tensile strength instead of yield strength
  3. Not applying safety factors
  4. Overlooking stress concentrations

Avoiding these mistakes improves safety and performance.

🏆 Company Advantages

At Otai Special Steel, we supply high-quality 4140 steel with consistent mechanical properties:

  • Over 10,000 tons of inventory available year-round
  • Full size range from 6mm to 300mm
  • Precision cutting and customized heat treatment services
  • Strict quality control including ultrasonic testing (UT) and chemical analysis
  • Support for third-party inspections such as SGS
  • Extensive experience supplying global industrial clients

We help customers achieve reliable performance in critical applications.

❓ FAQ

1. What is the yield strength of 4140 steel in MPa?

Typically between 650 and 900 MPa in quenched and tempered condition.

2. Does heat treatment affect yield strength?

Yes, it significantly increases strength and performance.

3. What is the difference between yield and tensile strength?

Yield strength is the limit before deformation, while tensile strength is the maximum load capacity.

4. Is 4140 stronger than 1018 steel?

Yes, it offers much higher strength and durability.

5. Which condition is best for high strength?

Quenched and tempered condition provides the highest yield strength.

0 0 Continue Reading →
4140 Steel UK Equivalent: Understanding British Standards and Global Substitutes

By

in

Blog

Posted

April 16, 2026 at 9:04 am

4140 Steel UK Equivalent: Understanding British Standards and Global Substitutes

4140 Steel UK Equivalent: Understanding British Standards and Global Substitutes4140 Steel UK Equivalent: Understanding British Standards and Global Substitutes

🔍 Introduction

When sourcing materials internationally, understanding the 4140 steel UK equivalent is essential for engineers, buyers, and manufacturers. Different countries use different standards, and selecting the correct equivalent ensures consistent performance, safety, and compliance.

In this article, we explain what is 4140 steel equivalent in UK, including British standard grades, chemical composition comparison, mechanical properties, and practical substitution guidelines.

⚙️ What Is 4140 Steel?

4140 steel is a chromium-molybdenum alloy steel widely used for its high strength, toughness, and fatigue resistance. It is commonly supplied in quenched and tempered condition.

Key features:

  • Medium carbon alloy steel
  • Excellent hardenability
  • High fatigue strength
  • Good wear resistance

This makes it suitable for demanding engineering applications.

🇬🇧 4140 Steel UK Equivalent Grade

The most recognized 4140 steel uk equivalent grade in British/European standards is:

👉 42CrMo4 (EN 10083-3)

In older British standards, it may also be referenced under BS specifications, though EN standards are now dominant across the UK.

Equivalent Summary Table

Standard Grade
AISI/SAE 4140
EN / UK 42CrMo4 (1.7225)
DIN 1.7225
JIS SCM440
GB 42CrMo

This table represents the commonly used international equivalents of 4140 steel.

🧪 Chemical Composition Comparison

To understand the 4140 steel equivalent chemical composition uk, compare key elements:

Element 4140 (%) 42CrMo4 (%)
Carbon (C) 0.38–0.43 0.38–0.45
Chromium (Cr) 0.8–1.1 0.9–1.2
Molybdenum (Mo) 0.15–0.25 0.15–0.30
Manganese (Mn) 0.75–1.0 0.6–0.9

Insight:

The compositions are very similar, making 42CrMo4 a reliable substitute.

📊 Mechanical Properties Comparison

The 4140 steel uk equivalent properties are closely matched.

Property 4140 Steel 42CrMo4 Steel
Tensile Strength 850–1100 MPa 850–1100 MPa
Yield Strength 650–900 MPa 650–900 MPa
Hardness 28–50 HRC 28–50 HRC
Toughness High High

Conclusion:

There is minimal difference in performance when properly heat treated.

🔄 4140 Steel vs 42CrMo4 Comparison

The 4140 steel vs 42crmo4 comparison shows:

Similarities:

  • Nearly identical chemical composition
  • Comparable mechanical properties
  • Same heat treatment processes

Differences:

  • Slight variation in alloy tolerances
  • Different standard systems (AISI vs EN)

In most applications, they are interchangeable.

🔥 Heat Treatment and Performance

Both steels respond similarly to heat treatment.

Typical Process:

  • Austenitizing: 830–870°C
  • Quenching: oil or water
  • Tempering: 200–650°C

Result:

  • High strength
  • Good toughness
  • Adjustable hardness

This ensures compatibility between 4140 and its UK equivalent.

🏭 Applications in Industry

The 4140 steel equivalent in British standard materials are used in:

Common Applications:

  • Shafts and axles
  • Gears and crankshafts
  • Oil and gas components
  • Heavy machinery parts
  • High-strength fasteners

Their reliability makes them ideal for critical components.

🧭 How to Choose the Right Equivalent

When selecting 4140 steel uk standard name, consider:

  1. Required mechanical properties
  2. Heat treatment condition
  3. Certification and standards
  4. Supplier capabilities

Practical Tip:

Always verify material certificates when substituting grades.

⚠️ Common Mistakes in Material Substitution

  1. Assuming all equivalents are identical without verification
  2. Ignoring heat treatment conditions
  3. Overlooking standard differences
  4. Not checking certification requirements

Avoiding these ensures safe and effective substitution.

🏆 Company Advantages

At Otai Special Steel, we supply both 4140 steel and its UK equivalents with guaranteed quality:

  • Over 10,000 tons of inventory available year-round
  • Full size range from 6mm to 300mm
  • Precision cutting and customized heat treatment services
  • Strict quality control including ultrasonic testing (UT) and chemical analysis
  • Support for third-party inspections such as SGS
  • Extensive experience supplying global industrial clients

We help customers source equivalent materials with confidence and consistency.

❓ FAQ

1. What is the UK equivalent of 4140 steel?

The most common equivalent is 42CrMo4 (EN 1.7225).

2. Are 4140 and 42CrMo4 the same?

They are not identical but are very similar and widely interchangeable.

3. Can I replace 4140 with UK equivalent directly?

Yes, in most cases, but always verify specifications and certifications.

4. Is there a difference in performance?

Performance is nearly identical when properly heat treated.

5. Why use equivalents in international trade?

To ensure compatibility across different standards and regions.

0 0 Continue Reading →
4140 Steel Tempering Chart: Temperature vs Hardness and Performance Control

By

in

Blog

Posted

April 16, 2026 at 1:49 am

4140 Steel Tempering Chart: Temperature vs Hardness and Performance Control

4140 Steel Tempering Chart: Temperature vs Hardness and Performance Control4140 Steel Tempering Chart: Temperature vs Hardness and Performance Control

🔍 Introduction

The 4140 steel tempering chart is a critical reference for engineers and heat treatment specialists who need to balance hardness, strength, and toughness. After quenching, 4140 steel becomes very hard but also brittle. Tempering adjusts these properties to meet specific application requirements.

In this article, we explain the 4140 steel tempering chart explained, including how temperature affects hardness, how to interpret the chart, and how to select the optimal tempering conditions.

⚙️ What Is Tempering in 4140 Steel?

Tempering is a heat treatment process performed after quenching to reduce brittleness and improve toughness.

Key Objectives:

  • Reduce internal stresses
  • Improve ductility
  • Adjust hardness to desired levels

The effect of tempering on 4140 steel properties is essential for achieving reliable mechanical performance.

📊 4140 Steel Tempering Temperature vs Hardness

The 4140 steel tempering temperature vs hardness relationship is the core of the tempering chart.

Typical Tempering Chart

Tempering Temperature (°C) Hardness (HRC)
200°C 50–52 HRC
300°C 45–48 HRC
400°C 40–44 HRC
500°C 35–38 HRC
600°C 28–32 HRC
650°C 25–28 HRC

Insight:

  • Lower temperature → higher hardness, lower toughness
  • Higher temperature → lower hardness, higher toughness

This table represents the typical 4140 steel hardness after tempering chart.

🔥 4140 Steel Tempering Process Step by Step

The 4140 steel tempering process step by step ensures consistent results.

Process Steps:

  1. Quench the steel from 830–870°C
  2. Reheat to tempering temperature
  3. Hold for 1–2 hours depending on thickness
  4. Cool in air

Important Notes:

  • Avoid overheating
  • Ensure uniform temperature distribution

🎨 4140 Steel Tempering Colors and Meaning

The 4140 steel tempering colors and meaning provide a visual guide during heat treatment.

Color Temperature (Approx.) Application
Light straw ~200°C Maximum hardness
Dark straw ~240°C High strength
Brown ~260°C Balanced properties
Purple ~280°C Increased toughness
Blue ~300°C High toughness

Practical Tip:

Color observation is useful for quick checks but should not replace precise temperature control.

🧭 How to Read 4140 Steel Tempering Chart

Understanding how to read 4140 steel tempering chart is straightforward:

  1. Select required hardness
  2. Find corresponding tempering temperature
  3. Adjust based on application requirements

Example:

  • Required hardness: 40 HRC
  • Tempering temperature: ~400°C

This method helps in process optimization.

⚖️ Optimal Tempering Temperature for 4140 Steel

Choosing the optimal tempering temperature for 4140 steel depends on application.

Typical Recommendations:

Application Temperature Range
High wear resistance 200–300°C
Balanced strength and toughness 400–500°C
High toughness 550–650°C

Insight:

Selecting the right temperature ensures performance and durability.

🔬 Effect of Tempering on 4140 Steel Properties

The effect of tempering on 4140 steel properties includes:

  • Reduced hardness
  • Increased ductility
  • Improved impact resistance
  • Enhanced fatigue performance

Proper tempering prevents brittle failure in service.

🏭 4140 Steel Tempering Range and Applications

The 4140 steel tempering range and applications vary across industries.

Applications by Tempering Level:

  • Low temperature tempering → cutting tools, wear-resistant parts
  • Medium temperature → shafts, gears
  • High temperature → structural components, heavy machinery

⚠️ Common Mistakes in Tempering 4140 Steel

  1. Incorrect temperature selection
  2. Insufficient holding time
  3. Uneven heating
  4. Skipping tempering after quenching

Avoiding these mistakes ensures consistent material performance.

🏆 Company Advantages

At Otai Special Steel, we provide high-quality 4140 steel with precise heat treatment support:

  • Over 10,000 tons of inventory available year-round
  • Full size range from 6mm to 300mm
  • Advanced heat treatment services including quenching and tempering
  • Strict quality control with ultrasonic testing (UT) and chemical analysis
  • Third-party inspection support such as SGS
  • Extensive experience supplying global industrial clients

We help customers achieve precise hardness control and reliable performance.

❓ FAQ

1. What is the purpose of tempering 4140 steel?

To reduce brittleness and improve toughness after quenching.

2. What is the hardness of 4140 steel after tempering?

It depends on temperature, typically 25–52 HRC.

3. What is the best tempering temperature?

It depends on application, usually between 200°C and 650°C.

4. Can 4140 steel be used without tempering?

No, it becomes too brittle after quenching.

5. How does tempering affect strength?

It reduces hardness slightly but improves toughness and reliability.

0 0 Continue Reading →
SN Curve for 4140 Steel: Understanding Fatigue Life and Performance Limits

By

in

Blog

Posted

April 15, 2026 at 4:31 am

SN Curve for 4140 Steel: Understanding Fatigue Life and Performance Limits

SN Curve for 4140 Steel: Understanding Fatigue Life and Performance LimitsSN Curve for 4140 Steel: Understanding Fatigue Life and Performance Limits

🔍 Introduction

The SN curve for 4140 steel is a critical tool for engineers designing components subjected to cyclic loading. Whether in automotive shafts, oilfield equipment, or heavy machinery, fatigue failure can occur even when stresses are below the material’s yield strength.

This article explains the sn curve for 4140 alloy explained, including how to read it, typical data values, endurance limits, and how heat treatment affects fatigue performance.

⚙️ What Is an SN Curve?

An SN curve (Stress–Number of cycles curve) represents the relationship between cyclic stress amplitude (S) and the number of cycles to failure (N).

Key Concept:

  • High stress → low fatigue life
  • Low stress → high fatigue life

The SN curve is essential for predicting sn curve vs fatigue life for 4140 steel in real-world applications.

📊 SN Curve Data for 4140 Steel

Typical sn curve data for 4140 steel (quenched and tempered condition) is shown below:

Stress Amplitude (MPa) Number of Cycles (N)
900 MPa 10³ cycles
700 MPa 10⁴ cycles
550 MPa 10⁵ cycles
450 MPa 10⁶ cycles
400 MPa 10⁷ cycles

These values form the basis of the 4140 steel fatigue properties chart.

📉 Endurance Limit of 4140 Steel

The endurance limit of 4140 steel sn curve is a key design parameter.

  • Typically around 400–450 MPa
  • Represents the stress below which infinite life is expected
  • Applies mainly to polished specimens under controlled conditions

Practical Insight:

In real applications, engineers often apply safety factors due to surface roughness and stress concentrations.

🔬 How to Read SN Curve for 4140 Steel

Understanding how to read sn curve for 4140 steel is essential.

Steps:

  1. Identify applied stress level
  2. Locate corresponding point on curve
  3. Read number of cycles to failure

Example:

  • If stress = 500 MPa
  • Expected life ≈ 10⁵–10⁶ cycles

This method supports 4140 steel fatigue life calculation using sn curve.

🔥 Effect of Heat Treatment on SN Curve

The sn curve for 4140 steel in different heat treatment conditions varies significantly.

Comparison Table

Condition Fatigue Strength Characteristics
Annealed Low Soft, low fatigue resistance
Normalized Moderate Balanced properties
Quenched & Tempered High Best fatigue performance

Insight:

Proper heat treatment significantly improves fatigue life and shifts the SN curve upward.

🧪 Factors Affecting SN Curve of 4140 Steel

Several factors influence the factors affecting sn curve of 4140 steel:

1. Surface Finish

  • Smooth surface → higher fatigue strength
  • Rough surface → early crack initiation

2. Heat Treatment

  • Improves strength and fatigue resistance

3. Residual Stress

  • Compressive stress → beneficial
  • Tensile stress → harmful

4. Environment

  • Corrosion reduces fatigue life

5. Stress Concentration

  • Sharp corners reduce fatigue performance

🧮 Fatigue Life Calculation Using SN Curve

The 4140 steel fatigue life calculation using sn curve follows basic steps:

  1. Determine cyclic stress
  2. Use SN curve to find corresponding cycles
  3. Apply safety factor

Example Table

Stress (MPa) Estimated Life
600 MPa ~10⁴ cycles
500 MPa ~10⁵ cycles
450 MPa ~10⁶ cycles

This helps engineers design safer components.

🏭 Practical Applications

The fatigue strength of 4140 steel sn curve is widely used in:

Automotive Industry

  • Drive shafts
  • Crankshafts

Oil & Gas

  • Drill collars
  • High-pressure components

Heavy Machinery

  • Rotating shafts
  • Load-bearing components

Using SN curves ensures durability and prevents unexpected failures.

⚠️ Common Mistakes in Fatigue Design

  1. Ignoring surface finish effects
  2. Using ideal SN data without safety factors
  3. Overlooking stress concentrations
  4. Not considering environmental conditions

Avoiding these mistakes improves reliability.

🏆 Company Advantages

At Otai Special Steel, we provide high-quality 4140 steel with consistent fatigue performance:

  • Over 10,000 tons of inventory available year-round
  • Full size range from 6mm to 300mm
  • Precision cutting and customized heat treatment services
  • Strict quality control including ultrasonic testing (UT) and chemical analysis
  • Support for third-party inspections such as SGS
  • Extensive experience supplying global industrial clients

We help customers achieve reliable performance in fatigue-critical applications.

❓ FAQ

1. What is the endurance limit of 4140 steel?

Typically around 400–450 MPa in quenched and tempered condition.

2. How is the SN curve used in design?

It predicts the number of cycles a material can withstand under cyclic stress.

3. Does heat treatment affect the SN curve?

Yes, it significantly improves fatigue strength and life.

4. Can 4140 steel fail below yield strength?

Yes, due to fatigue under cyclic loading.

5. How can fatigue life be improved?

By improving surface finish, applying heat treatment, and reducing stress concentrations.

0 0 Continue Reading →
«←7891011→ »
