ASTM 4140 Steel | 1.7225 | 42CrMo4 | 42CD4 | 2244 | SCM440 Oil and Gas industry Steel
ASTM 4140 Steel is a Alloy Structural Steel belong to ASTM A29/A29M Steel Grade standard. AISI 4140 used in Oil and Gas industry and Large Machinery Strutural. 4140 Steel China Supplier and factory Otai Special Steel Supply ASTM 4140 steel in Round bar, Plate, Flat bar, Square, Forging Ring and others any shape. And provide cutting, sawing, milled, machining processing.
1. Supply Form of ASTM 4140 Steel -ASTM A29/A29M Alloy Structural Steel
2. Supply Range of ASTM 4140 Alloy Steel

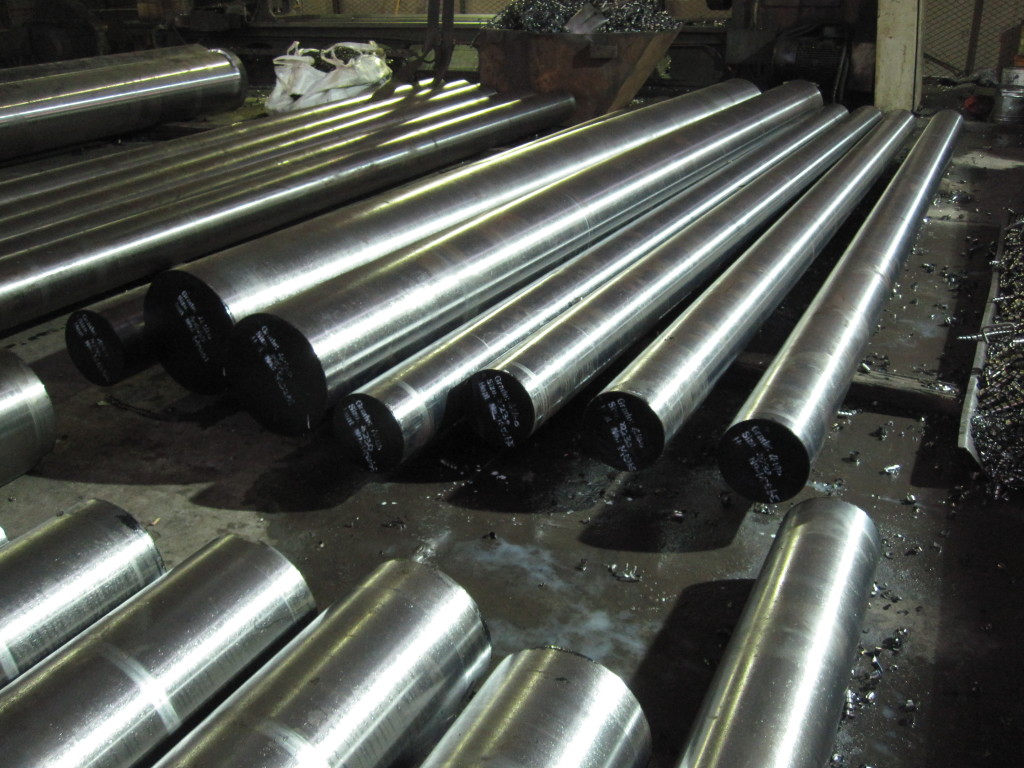

4140 Steel Round Bar: diameter 5mm – 400mm
ASTM 4140 Steel Plate: thickness 5 –500mm x width 200– 2300mm
4140 Steel Block: 210mm x 500-810mm
3. Chemical Composition of AISI 4140 Steel Material
ASTM A29/A29M | C | Si | Mn | P | S | Cr | Mo |
4140/G41400 | 0.35~0.40 | 0.20~0.35 | 0.70~0.90 | 0.025 Max | 0.025 Max | 0.80~1.10 | 0.18~0.25 |
DIN 17220, EN 10083 | C | Si | Mn | P | S | Cr | Mo |
1.7225/42CrMo4 | 0.38~0.45 | ≤0.40 | 0.60~0.90 | 0.035 Max | 0.035 Max | 0.90~1.20 | 0.15~0.30 |
GB/T 1229 | C | Si | Mn | P | S | Cr | Mo |
42CrMo | 0.38~0.45 | 0.17~0.37 | 0.50~0.80 | 0.030 Max | 0.030 Max | 0.90~1.20 | 0.15~0.25 |
JIS G4105 | C | Si | Mn | P | S | Cr | Mo |
SCM440 | 0.38~0.43 | 0.15~0.35 | 0.60~0.85 | 0.030 Max | 0.030 Max | 0.90~1.20 | 0.15~0.30 |
4. ASTM 4140 alloy Steel Equivalent and Related Speciation
USA | German | Japan | China | ISO |
ASTM 29/A29M | DIN 17350 | JIS G4404 | GB/T 1229 | ISO 683/18 |
4140 | 1.7225/42CrMo4 | SCM440 | 42CrMo | 42CrMo4 |
5. ASTM 4140 Steel Material Mechanical Properties
Nominal diameter (mm): | to 16 | 16 – 40 | 40 – 100 | 100 – 160 | 160 – 250 | 250 – 330 | 330 – 660 |
Rm – Tensile strength (MPa) (+QT) | 1100-1300 | 1000-1200 | 900-1100 | 800-950 | 750-900 | 700 | 600 |
Nominal thickness (mm): | 0.3 – 3 |
Rm – Tensile strength (MPa) (+A) | 620 |
Rm – Tensile strength (MPa) (+AC) | 630 |
Nominal thickness (mm): | to 8 | 8 – 20 | 20 – 50 | 50 – 80 |
Rm – Tensile strength (MPa) (+QT) | 1100 | 1000 | 900 | 800 |
Rm – Tensile strength (MPa) (+C) | 720 |
Rm – Tensile strength (MPa) (+LC) | 670 |
Nominal diameter(mm): or for flat products thickness: to 8; 8-20; 20-60; 60-100; 100-160; | to 16 | 16 – 40 | 40 – 100 | 100 – 160 | 160 – 330 | 330 – 660 |
Re – Upper yield strength or Rp0.2 – 0.2% proof strength (MPa) (+QT) |
900 | 750 | 650 | 500-550 | 460-500 | 390 |
Nominal thickness(mm): | 0.3 – 3 |
Rp0.2 0.2% proof strength (MPa) (+A) | 480 |
KV – Impact energy (J) longitud., (+QT) | +20° 30-35 |
KV – Impact energy (J) transverse, (+QT) | +20° 22 |
Nominal thickness (mm): | 0.3 – 3 |
A – Min. elongation Lo = 80 mm (%) (+A) | 15 |
A – Min. elongation at fracture (%) transverse, (+QT) | 10-14 |
A – Min. elongation at fracture (%) (+C) | 4 |
A – Min. elongation at fracture (%) (+LC) | 6 |
Nominal thickness (mm): | to 16 | 16 – 40 | 40 – 100 | 100 – 160 | 160 – 250 |
A – Min. elongation Lo = 5,65 √ So (%) (+QT), round products | 10 | 11 | 12 | 13 | 14 |
Nominal diameter (mm): or for flat products thickness: to 8; 8-20; 20-60; 60-100; 100-160; | to 16 | 16 – 40 | 40 – 100 | 100 – 160 | 160 – 250 |
Z – Reduction in cross section on fracture (%) (+QT) | 40 | 45 | 50 | 50 | 55 |
Z – Reduction in cross section on fracture (%) (+AC) | 57 |
Brinell hardness (HBW): (+S) | 255 |
Brinell hardness (HBW): (+A) | 241 |
Vickers hardness ( HV): (+A) | 195 |
Vickers hardness ( HV): (+QT) | 340 – 490 |
6. Forging of ASTM 4140 Oil and Gas industry Steel material metal
Forging of 4140 steel should be carried out between 2200 and 1650 º F (1200 and 900 º C). The lower the finishing temperature from forging, the finer will be the grain size. This alloy steel should ideally not be forged below 1650 º F (900 º C) and should be slow cooled after forging in Oil or water.
7. Heat Treatment of SAE 4140 Alloy Steel
- ASTM 4140 Steel Annealing
Slowly heat to 800~8500 ºC, keep enough time, ensure heat thoroughly. then cooling in furnace to 480 ºC, then cool in air. After annealing, the hardness 92 HBS Max.
- AISI 4140 Steel Hardening & Quenching
4140 Steel is usually used at 18-22 HRc, If needs, AISI 4140 alloy steel can be hardened or Quenching by cold work. Quenching medium: oil
- Tempering Of ASTM 4140 Alloy Steel
/ ℃ tempering temperature: 205 ~ 649°C.
After tempering hardness HRC: 18-25 HRC.
8. Application of ASTM / AISI 4140 Alloy Steel
4140 alloy steel used for Structural products. As below:
Oil and gas sector, like collets, connection rods, conveyor pins, stem assemblies, gears, Bearings
9. Quality Assured of SAE 4140 Alloy Steel
Quality assured by Our ISO 9001:2008 quality management system. Our all 4140 steel all had by SEP 1921-84 ultrasonic inspection (UT Test). Quality Grade: E/e, D/d, C/c.
If you have any 4140 Alloy steel inquiry and question for Price, Application, hot treatment, please don’t hesitate to contact us.
