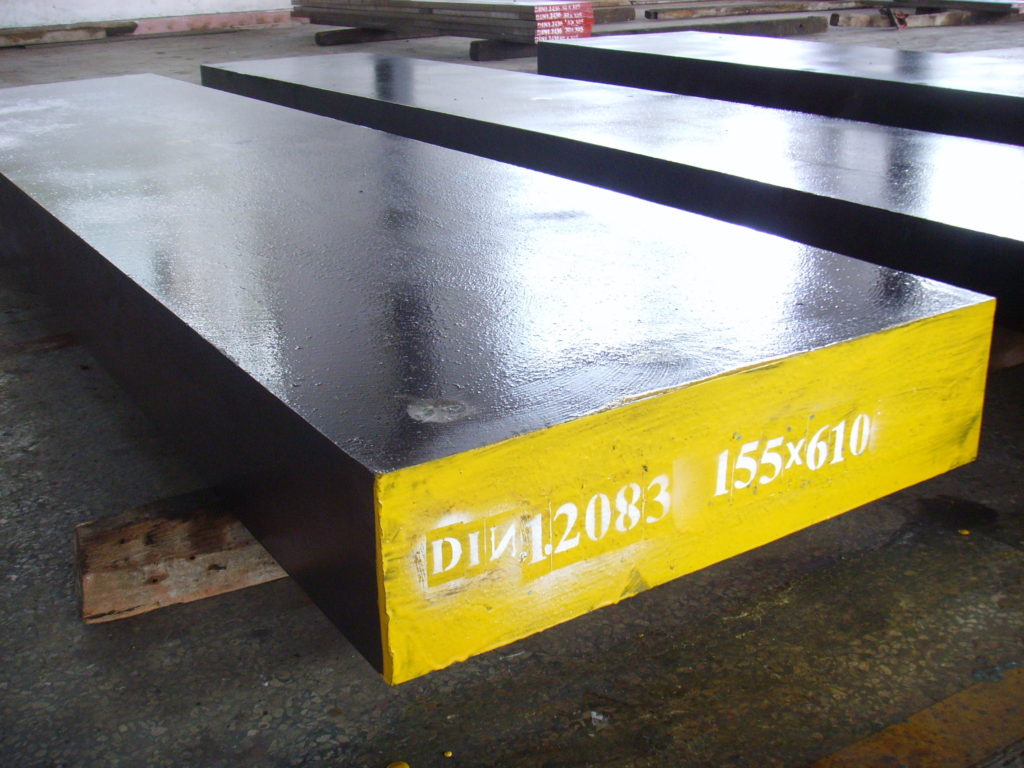

din 1.2083 Steel Plate flat bar
aisi 420 1.2083 round bar

1.2083 Steel | X42Cr13 | SUS420J2 | X40Cr14 | 2314 | 17029 | 420S37 | X12 | 420 Modified Plastic Mold Steel

DIN 1.2083 is typical Stainless Chrome Plastic Mold Steel. German die steel 1.2083 is a chromium content up to 13% of the plastic die steel. 1.2083 mold steel has good polishing and excellent wear resistance, is often used to prevent acid plastic mold. Special Steel China Supplier and factory -OTAI SPECIAL STEEL COMPANY supply 1.2083 steels in round bar, plate, flat bar, square, block and others any shape.

Supply Form of 1.2083 Din 17350 Hot work tool steel-Plastic Mold Steel
Supply Range of Din 1.2083 Plastic Mold Steel.

1.2083 Steel Round Bar: diameter 5mm – 400mm

1.2083 Plate: thickness 20–500mm x width 200– 1400mm

1.2083 Block: 210mm x 500-810mm1.2083 Steel Plate-flat bar

Chemical Composition of 1.2083 Stainless Steel Material- Plastic Mold Steel
ASTM A681 C Si Mn P S Cr
420 Modified ≤1.00 ≤1.00 0.20～0.40 0.030 Max 0.030 Max 12.5～13.5
DIN 17350 C Si Mn P S Cr
1.2083/ X42Cr13 ≤1.00 ≤1.00 0.20～0.40 0.030 Max 0.030 Max 12.5～13.5
GB/T 9943 C Si Mn P S Cr
4Cr13 0.35～0.45 ≤0.60 ≤0.80 0.030 Max 0.030 Max 12.0～14.0
JIS G4403 C Si Mn P S Cr
SUS420J2 0.26～0.40 ≤1.00 ≤1.00 0.030 Max 0.030 Max 12.0～14.0
1.2083 Material Equivalent and Related Speciations
USA German Japan China ISO
ASTM A681 DIN 17350 JIS G4403 GB/T 9943 ISO 4957
420 Modified 1.2083/X42Cr13 SUS420J2 4Cr13 X42Cr13
DIN W-N r 1.2083 Material Mechanical Properties

Hardening after tempering value/MPa | 400 ℃.: 1910

Hardening after tempering value/MPa | 500 ℃ : 1860

Hardening after tempering value/MPa | 600 ℃ : 1130

Hardening after tempering value/MPa | 650 ℃ : 930

Forged of 1.2083

Pre-Heating to 600℃，Then heat to forged temperature. Soak at 800-1100°C, ensure heat thorough. Then start forged, the forged temperature no low than 650℃. After forging, cool slowly.

Heat Treatment of DIN 1.2083 Plastic Steel
  • 1.2083 Annealing

Slowly heat to 750-800℃，then slowly Cools to 538℃(1000℉) in heat treatment furnace. Then cool in air. After annealing hardness HBS: 225 Max

  • Din W-Nr 1.2083 Hardening

1.2083 steel having very high hardenability and should be hardened by cooling in still air. The use of a salt bath or controlled atmosphere furnace is desirable to minimize decarburization, and if not available, pack hardening in spent pitch coke is suggested.

  • Quenching of Stainless Plastic mold 1.2083 material

Quenching temperature / ℃ : 1020~1050

Quenching medium: Oil cooling

Hardness: 50 HRc

  • Tempering Of 1.2083

Tempering temperature / ℃ : 200-300

After tempering hardness HRC or higher: 28-34 HRc

Application of Din X42Cr13 W-Nr 1.2083

1.2083 is suitable for electric erosion operation, suitable for acid good polishing mold plastics and requirements. Mainly used in the production of PVC mold, wearability and filling the mold, including the hot hard type of plastic mold, long-life mold, such as: disposable tableware mold, optical components production, such as camera, and the sunglasses, medical containers and etc.

Quality Assured of X42Cr13/1.2083

Quality assured by ISO 9001:2008 quality management system. Our all 2083 steel all had by SEP 1921-84 ultrasonic inspection (UT Test). Quality Grade: E/e, D/d, C/c.
