O2 Tool Steel | 1.2842 | 9Mn2V | 90MnCrV8 | 90MnV8 Oil-Hardening Cold Work Steel

O2 Tool steel is a cold work steel belong to ASTM A681-1999 Steel Grade standard. O2 Special Steel China Supplier and factory Otai Special Steel Supply O2 Cold Work Tool steel in Round bar, Plate, Flat bar, Square, Forging Ring and others any shape. And provide cutting, sawing, milled, machining processing.

AISI O2 Oil Hardening Steel

Supply Form of O2 Steel -ASTM A681 Alloy Cold Work Tool Steel
Supply Range of aisi O2 Tool Steel

O2 Steel Round Bar: diameter 5mm – 400mm

O2 Steel Plate: thickness 10 –500mm x width 200– 1400mm

O2 Steel Block: 210mm x 500-810mm

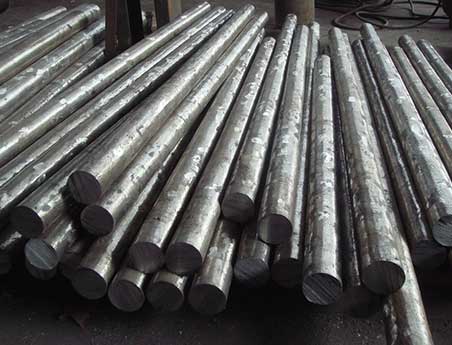

O2 TOOL STEEL BAR

Chemical Composition of O2 Tool Steel Material
ASTM A681 C Si Mn P S Cr Mo V
O2/T31502  0.85～0.95  ≤0.50 1.40～1.80  0.030 Max  0.030 Max ≤0.50  ≤0.30  ≤0.30
DIN 17350 C Si Mn P S Cr Mo V
1.2842/90MnCrV8 0.85～0.95 0.10～0.40 1.90～2.10 0.035 Max 0.035 Max 0.20～0.50 — 0.05～0.15
GB/T 1299 C Si Mn P S Cr Mo V
9Mn2V 0.85～0.95 ≤0.40 1.70～2.00 0.030 Max 0.030 Max ≤0.25 ~ ≤0.20
JIS G4404 C Si Mn P S Cr Mo V
O2 tool Steel Equivalent and Related Speciation
USA German Japan China ISO
ASTM A681 DIN 17350 JIS G4404 GB/T 1299 ISO 4957
O2 1.2842 9Mn2V 90MnV2



ASTM AISI O2 Tool Steel Material Mechanical Properties

Hardness, Rockwell C: 62 HRc, Density: 7.85kg/m3

Izod impact unnotched: .

Melting point:

Thermal expansion: 11.2 x 10-6/ ºC (20-100 ºC)

Elastic modulus: 27557-30458 ksi (at 25 ºC ).

Forged of Cold Work O2 Steel material metal

Forged O2 tool steel at 980-1050 ºC. no forging when below 960 ºC.

Heat Treatment of SAE/AISI O2 Steel
  • O2 Steel Annealing



Slowly heat to 740～770 ºC, keep enough time, ensure heat thoroughly. then cooling in furnace at 4-5 ºC per hour. After annealing, the hardness 183~212 HBS Max.

  • O2 tool Steel Hardening & Quenching



/ ℃ quenching temperature: 760～800

Quenching medium: oil

  • Tempering Of O2 Steel

/ ℃ tempering temperature: 150 ~ 260

After tempering hardness HRC: 62-57

Application of Sae AISI O2 tool Steel

O2 tool steel used for cold work tool products. As below:

1) For the thickness of <6mm stamping die, paper cutter appliances.

2) This steel is used for plastic molds, when used to heat treatment, the use of hardness 58 ~ 60HRC

Quality Assured of Sae O2 Steel

Quality assured by Our ISO 9001:2008 quality management system. Our all O2 tool steel all had by SEP 1921-84 ultrasonic inspection (UT Test). Quality Grade: E/e, D/d, C/c.

If you have any O2 steel inquiry and question for Price, Application, hot treatment, please don’t hesitate contact us.
