16MnCr5 case hardening steel
OTAI SPECIAL STEEL is 16MnCr5 case hardening steel stockholder and supplier from China. more than 25 years of experience in 16MnCr5 steel round bar, flat bar and plate supply.
16MnCr5 (1.7131) is a low-alloy case hardening steel (carburizing steel) defined under DIN EN 10084. It is widely used for manufacturing components requiring high surface hardness and excellent core toughness. This steel is particularly suited for gears, shafts, automotive parts, and machinery components subjected to wear and dynamic loads.
16MnCr5 case hardening steel properties are as below:
Form of Supply

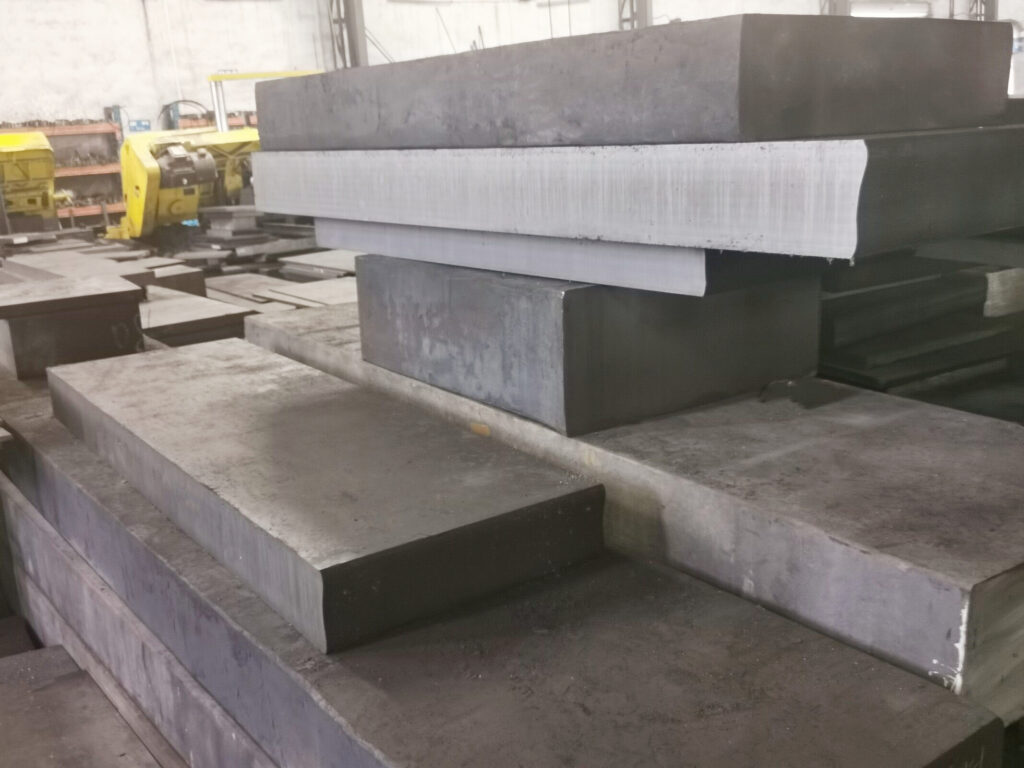

16MnCr5 steel, we can supply the round bar, steel flat bar, plate, hexagonal steel bar, and steel square block. Round bar can be sawn to your required lengths as one-offs or multiple cut pieces. Rectangular pieces can be sawn from flat bar or plate to your specific sizes. Ground tool steel bar can be supplied, providing a quality precision finished bar to tight tolerances.
-
- Round
-
- sheet
-
- Square
-
- Plate
Chemical composition
| C(％) | 0.14～0.19 | Si(％) | ≤0.40 | Mn(％) | 1.00 – 1.30 | P(％) | ≤0.025 |
| S(％) | ≤0.035 | Cr(％) | 0.80 – 1.10 |
Mechanical Properties
The mechanical properties of 16MnCr5 steel are outlined in the following table.
| Property | Value Range |
|---|---|
| Tensile Strength (Rm) | 800 – 1100 MPa |
| Yield Strength (Rp0.2) | ≥ 500 MPa (core) |
| Elongation (A5) | ≥ 10% |
| Impact Toughness (ISO-V) | ≥ 35 J (core) |
| Hardness (Surface) | 58 – 62 HRC (after case hardening) |
Heat treatment Related
| Process | Parameters |
|---|---|
| Normalizing | 870 – 900°C, air cooled |
| Carburizing | 880 – 980°C |
| Hardening | 780 – 820°C, oil quenching |
| Tempering | 150 – 200°C (for case hardened parts) |
| Case Depth | Typically 0.8 – 1.2 mm after carburizing |
After carburizing and quenching, 16MnCr5 achieves a hard, wear-resistant surface and a tough, ductile core, ideal for high-performance gear components.
Common Applications of 16MnCr5 Steel
-
Automotive transmission gears
-
Camshafts and crankshafts
-
Gear shafts and pinions
-
Industrial sprockets and chain wheels
-
Mechanical engineering parts requiring wear resistance
Quality Assured Supply
16MnCr5 alloy steel is supplied in accordance with our ISO 9001 2023 EN registration.
Steel Inventory Table
| Grade | Thickness(mm) | Width(mm) | Length(mm) | Weight(t) | |
|---|---|---|---|---|---|
| 1 | 16MnCr5 | 8 | 2200 | L | 25 |
| 2 | 16MnCr5 | 10 | 2200 | L | 25 |
| 3 | 16MnCr5 | 12 | 2200 | L | 25 |
| 4 | 16MnCr5 | 14 | 2200 | L | 25 |
| 5 | 16MnCr5 | 16 | 2200 | L | 25 |
| 6 | 16MnCr5 | 18 | 2200 | L | 25 |
| 7 | 16MnCr5 | 20 | 2200 | L | 25 |
| 8 | 16MnCr5 | 22 | 2200 | L | 25 |
| 9 | 16MnCr5 | 25 | 2200 | L | 25 |
| 10 | 16MnCr5 | 28 | 2200 | L | 25 |
| 11 | 16MnCr5 | 30 | 2200 | L | 25 |
| 12 | 16MnCr5 | 32 | 2200 | L | 25 |
| 13 | 16MnCr5 | 35 | 2200 | L | 25 |
| 14 | 16MnCr5 | 40 | 2200 | L | 25 |
| 15 | 16MnCr5 | 45 | 2200 | L | 25 |
| 16 | 16MnCr5 | 50 | 2200 | L | 25 |
| 17 | 16MnCr5 | 55 | 2200 | L | 25 |
| 18 | 16MnCr5 | 60 | 2200 | L | 25 |
Contact our experienced sales team to help you with your 16MnCr5 alloy steel questions or inquiries by Email or telephone. The questions will be replied to in 24 hours.
Email: jack@otaisteel.com
Tel: +86-769-23190193
Fax: +86-769-88705839
