We are AISI 5140 Alloy steel stockholders and suppliers from china. OTAI SPECIAL STEEL are AISI 5140RH steel suppllier.
AISI 5140 alloy Steel is a high quality specifiC hardenability bands Alloy Structural steel. And it belong to the high quality low carbon,Low alloy chromium, molybdenum, nickel case hardening steel. Oil Quenched & Tempered Hardenss is 28-34 HRc. Moreover, AISI 5140 steel Annealing delivery hardenss less than 250HB.
AISI 5140 Alloy structural steel properties is a Nickel chromium molybdenum alloy steel specification. Furthermore, AISI 5140 With a lower carbon content range, so AISI 5140 alloy steel have good weldability.
Relate Specifications ASTM A29/A29M DIN EN 10083/3 JIS G4053 GB GB/T 3077
Form of Supply

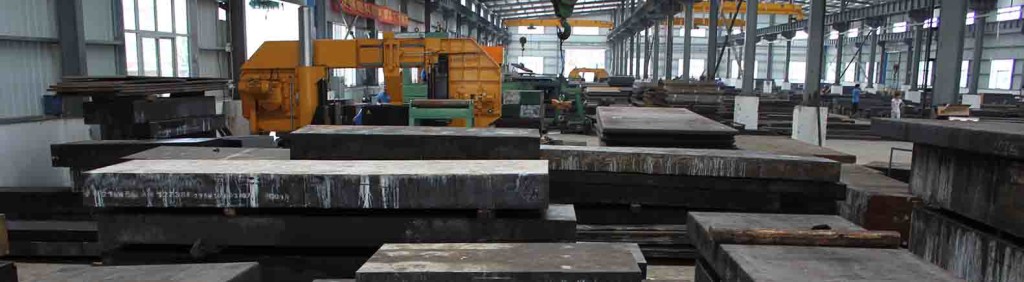

AISI 5140 Alloy steel, we can supply the round bar, steel flat bar, plate, hexagonal steel bar and steel square block. AISI 5140RH steel Round bar can be saw to your required lengths as one offs or multiple cut pieces. And AISI 5140 alloy steel Rectangular pieces can be saw from flat bar or plate to your specific sizes. Ground tool steel bar can be supplied, providing a quality precision finished bar to tight tolerances.
Chemical composition
| C(％) | 0.38～0.43 | Si(％) | 0.15～0.35 | Mn(％) | 0.70～0.90 | P(％) | ≤0.025 | |
| S(％) | ≤0.040 | Cr(％) | 0.70～0.90 | Mo(％) | 0.06Max | Ni(％) | 0.25Max |
Heat treatment Related
- Annealing of AISI 5140RH Alloy structural steel
Slowly heated to 850 ℃ and allow enough times, let the steel to be thoroughly heated, Then cool slowly in the furnace. The 5140RH alloy steel will get MAX 250 HB （Brinell hardness）.
- Hardening of AISI 5140RH Alloy structural steel
Heated slowly to 880-920°C, Then after adequate soaking at this temperature quench in oil. Temper as soon as tools reach room temperature.
Mechanical Properties
The mechanical properties of annealed AISI 5140RH alloy steel are outlined in the table below
| Tensile | Yield | Bulk modulus | Shear modulus | Poisson’s ratio | Izod Impact |
| KSI | KSI | KSI | KSI | ft.lb | |
| 76900 | 55800 | 20300 | 11600 | 0.27-0.30 | 84.8 |
Applications
AISI 5140RH steel is widely used for a variety of applications in the used in the automotive and engineering industries for toolholders and other such components. Typical applications such as valve bodies, pumps and fittings, Shaft, the high load of wheel, bolts, double-headed bolts, gears, etc
Regular size and Tolerance
Steel round bar: Diameter Ø 5mm – 3000mm
Steel plate: Thickness 5mm – 3000mm x Width 100mm – 3500mm
Steel Hexagonal bar: Hex 5mm – 105mm
Others 5140RH have not specified size, pls contact our experienced sales team.
AISI 5140RH alloy steel round bar and flat sections can be cut to your required sizes. 5140RH alloy steel ground bar can also be supplied, providing a high quality tool steel precision ground tool steel bar to your required tolerances. AISI 5140RH steel is also available as Ground Flat Stock / Gauge Plate, in standard and nonstandard sizes.
Contact our experienced sales team to help you with your 5140RH alloy steel questionsadn enquiry by Email or Telphone. The questions will be reply in 24 hours.
