The Influence of Processing Parameters on the Quality and Reliability of 4140 Steel Products

The influence of processing parameters on the quality and reliability of 4140 steel products has been studied by researchers. The effect of four controllable input process parameters of 4140 steel, cross-feed, workpiece velocity, and wheel velocity. And the depth of cut was experimentally investigated under dry and wet conditions.

TIG welding process parameters act as significant influences to evaluate the quality of the welded joint. In this research, the optimization technique for Tungsten inert gas process parameter is established by the Taguchi technique to explore the tensile strength of 4140 steel welded joint.

Due to this process, the bore (sub-)surface zone impinges with thermal and mechanical loads resulting in hardening, and structural changes in the microstructure. And the occurrence of residual stresses, which can influence the fatigue strength, service life, or reliability of the part.

Processing parameters such as cross-feed, workpiece velocity, wheel velocity, depth of cut, welding current, and welding speed. And filler diameter can significantly influence the quality and reliability of 4140 steel products.

The Formability of 4140 Steel using Different Forming Processes and Conditions

Forming processes are used to shape metals into various shapes and sizes. The formability of 4140 steel can be improved by using different forming processes and conditions. The most common forming processes include forging, extrusion, rolling, drawing, bending, and stamping. Each process has its advantages and disadvantages depending on the desired shape and size of the final product.

Forging is a process that involves heating the metal above its recrystallization temperature and then applying pressure to shape it into the desired shape.

Extrusion is a process that involves forcing the metal through a die to create a specific shape. Rolling is a process that involves passing the metal through a series of rollers to reduce its thickness. Drawing is a process that involves pulling the metal through a die to create a specific shape. Bending is a process that involves applying pressure to the metal to bend it into a specific shape. Stamping is a process that involves pressing the metal into a die to create a specific shape.

The formability of 4140 steel can also be improved by using different forming conditions such as temperature, pressure, and lubrication. The optimal forming conditions depend on the desired shape and size of the final product as well as the properties of the metal being formed.

Many different forming processes and conditions can be used to improve the formability of 4140 steel. Each process has its advantages and disadvantages depending on the desired shape and size of the final product. The optimal forming conditions depend on the properties of the metal being formed as well as the desired shape and size of the final product.

Everything you should know about 4140 low-alloy steel

4140 steel is categorized as low alloy steel which contains some significant levels of manganese, molybdenum, and chromium elements. This metal is applicable in a wide range of industries thanks to its physical and structural toughness. The number 4140 refers to the type of steel metal where 4 stands for Molybdenum.

4140 alloy steel is a low alloy steel containing chromium, molybdenum, and manganese. It is widely used across numerous industries and is an excellent material choice due to its toughness, high fatigue strength, and abrasion and impact resistance.  4140 steel has good machinability in the annealed condition. It can be heat treated for higher hardness and strength. The hardness of this steel can be increased if it has been quenched and tempered.

Below are some important 4140 low-alloy steel properties

1. Hardness and Extreme Ductility Due to the higher carbon and chromium content, 4140 steel is harder than normal steel.
2. Anti-Corrosion Property 4140 steel, just like a lot of other steel, is susceptible to rust.
3. Machinability 4140 steel also has good machinability.
4. Mechanical Properties
5. Elasticity
6. Element Composition
7. Anti-Rust Property
8. Heat Treatment

The mechanical properties of 4140 include tensile strength, yield strength, elongation, reduction of area, impact resistance, and hardness. 4140 steel typically has a target ultimate tensile strength of around 95,000 psi.

The Use of 4140 Steel in the Production of Gears and Shafts: Fatigue and Wear Resistance

4140 steel is a low-alloy steel that contains chromium, molybdenum, and manganese. These elements make it highly resistant to fatigue and wear in a variety of environments. Using 4140 alloy steel in the production of gears and shafts has become increasingly popular due to its high strength, toughness, and resistance to wear and fatigue.

The production of automotive parts including shafts, pinions, and gears frequently uses 4140 steel. This material is also used in the manufacture of various consumer goods. Such as hand tools, sporting goods, and other products that require high strength and wear resistance.

The Use of 4140 Steel

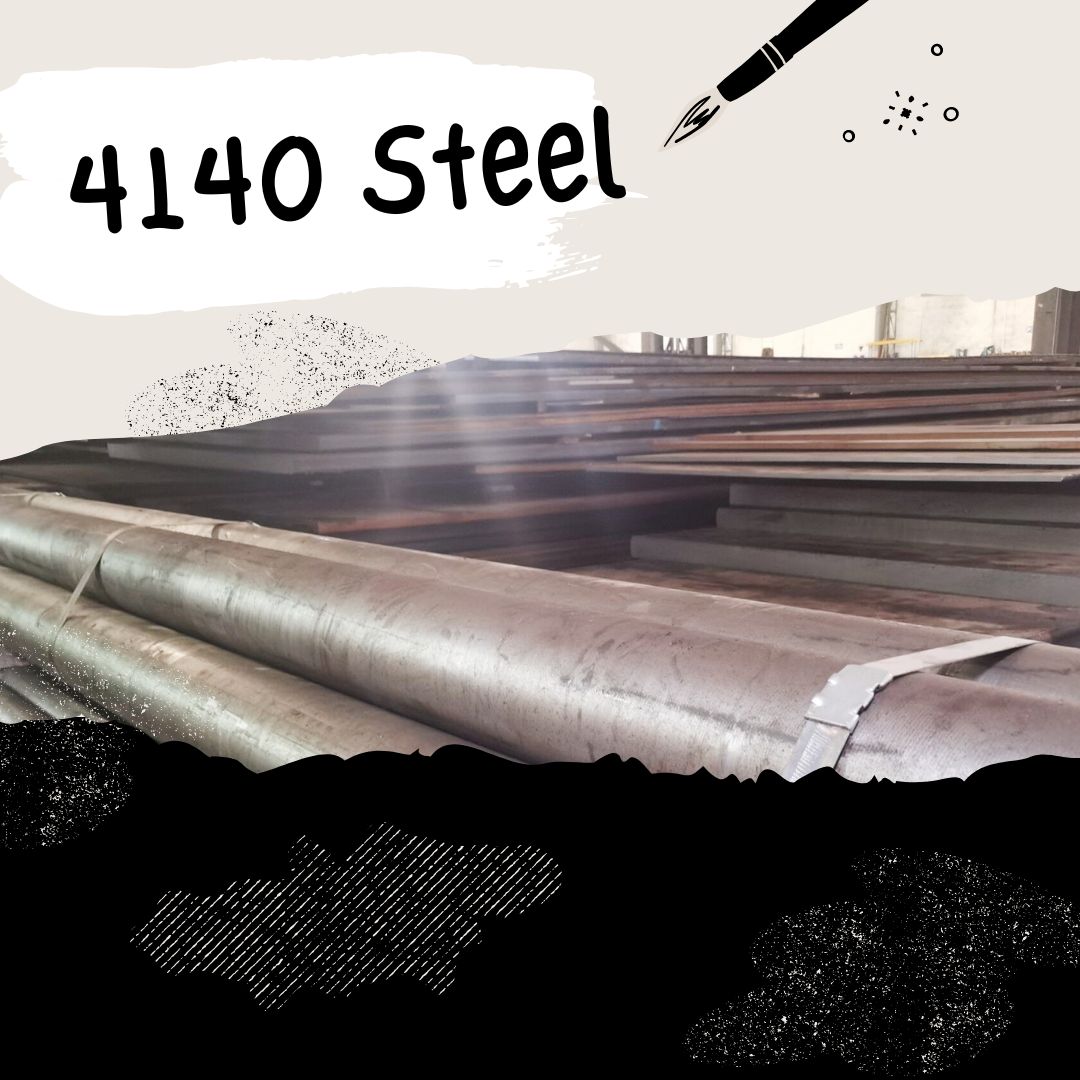

4140 alloy steel can be made into round steel bars, flat & square steel bars, steel plates, and steel tubes, and has many uses in the aerospace, oil and gas, and automotive industries. Typical uses are thin-walled pressure vessels, forged gears and shafts (Motor shafts, pump shafts, hydraulic shafts, etc.), and spindles (lathe spindles, milling…).

The low-cycle fatigue (LCF) behavior of 4140 steel under annealed and as-received conditions was investigated at room temperature. The annealing treatment causes a marked decrease in mechanical strength but an increase in plastic energy and ductility. The annealing treatment of 4140 steel significantly increases the LCF resistance.

The Corrosion Behavior of 4140 Steel in Different Environments

4140 steel is a low-alloy steel that contains chromium, molybdenum, and manganese. These elements make it highly resistant to corrosion in a variety of environments. The corrosion resistance of 4140 alloy steel can be attributed to the presence of chromium and molybdenum, which form a protective oxide layer on the surface of the steel.

The corrosion behavior of 4140 steel in different environments has been studied extensively.

In one study, the corrosion resistance of 4140 steel coated with CrN film was studied in air-saturated 3.5 wt% NaCl solution at different pH values. The results showed that the CrN-coated samples exhibited a lower corrosion rate than the uncoated samples at all pH values.

In another study, the corrosion fatigue of 4140 alloy steel was investigated under different environmental conditions. The critical corrosion rates were measured below and the environment does not affect fatigue life.

In yet another study, plasma nitriding effects on corrosion behavior were studied. After plasma treatments, the corrosion resistance of the 4140 steel was evaluated by potentiodynamic tests in artificial seawater solution at room temperature.

4140 steel is highly resistant to corrosion due to the presence of chromium and molybdenum. The corrosion resistance of 4140 steel has been studied extensively in different environments and under different conditions. The results show that 4140 steel is highly resistant to corrosion in a variety of environments.

Alloying elements play a significant role in enhancing the mechanical properties of 4140 steel and its machinability. In 4140 steel, additions of chromium, molybdenum, and manganese are used to increase the strength and hardenability of the steel. The additions of chromium and molybdenum are why 4140 is considered a “chromoly” steel.

The machinability of 4140 alloy can be attributed to the presence of alloy elements, which makes it extremely susceptible to cracks. The addition of sulfur can improve machinability but reduces toughness. The addition of selenium can improve machinability in some cases.

Machinability is defined as the ease with which a material can be machined to produce a finished part.

Machinability is an important factor in determining the cost-effectiveness of manufacturing processes. The machinability of 4140 steel is influenced by several factors including alloying elements, cutting speed, feed rate, and depth of cut.

The addition of sulfur can improve machinability but reduces toughness while the addition of selenium can improve machinability in some cases. The sulfur acts as a lubricant during machining and helps reduce tool wear. However, the addition of sulfur also reduces toughness and ductility. Selenium acts as a deoxidizer and helps reduce tool wear.

Alloying elements play a significant role in enhancing the mechanical properties of 4140 steel and its machinability. The addition of sulfur can improve machinability but reduces toughness while the addition of selenium can improve machinability in some cases. Machinability is an important factor in determining the cost-effectiveness of manufacturing processes.

The Impact of Quenching and Tempering on the Microstructure of 4140 Steel

Because of its excellent mechanical properties, steel is a widely used material in many industrial applications. One commonly used steel is 4140 steel, which is known for its high strength and toughness. However, to obtain these properties, the steel must undergo a heat treatment process called quenching and tempering.

Quenching involves heating steel to high temperatures and then cooling it quickly by immersing it in a quenching medium, such as oil or water. This rapid cooling causes the steel to harden and become brittle. To reduce this brittleness and increase its toughness, the steel is then tempered by reheating it to a lower temperature and allowing it to cool slowly. This process helps reduce internal stresses and promotes the formation of more malleable microstructure.

The effect of conditioning on the microstructure of 4140 steel is remarkable.

During the quenching process, the steel undergoes a phase transition from austenite to martensite. Martensite is a hard and brittle phase that is responsible for the high strength but low toughness of steel. The microstructure of martensite consists of highly ordered carbon and iron atoms that form a dense, hard material.

However, the brittleness of martensite can be reduced by tempering. During tempering, the martensite is reheated and the carbon and iron atoms begin to spread out and rearrange into less ordered structures. This transition leads to the formation of a new phase called tempered martensite. The microstructure of tempered martensite consists of hard martensite and softer ferrite or pearlite. This combination of hard and soft phases gives steel high strength and toughness.

The exact microstructure of 4140 steel after quenching and tempering depends on various factors, such as heating and cooling rates, quenching medium, and tempering temperature. Typically, higher tempering temperature results in a more malleable microstructure, while lower tempering temperature results in a harder but more brittle microstructure. The choice of tempering temperature must be balanced with the desired properties of the final product.

The effect of conditioning on the microstructure of 4140 steel is remarkable. The quenching process transforms the steel into a hard and brittle martensite phase, while tempering promotes the formation of a more malleable tempered martensite phase. The exact microstructure of steel depends on a variety of factors and can be adjusted to achieve desired properties. Understanding the effects of quenching and tempering is essential to the production of high-quality steels with excellent mechanical properties. (The Quenching and Tempering on 4140 Steel)

Comparison of 4140 Steel and Stainless Steel: Strength, Corrosion Resistance, and Cost

Compare two commonly used alloy sheets of steel: 4140 steel and stainless steel

Power

4140 steel is an alloy steel with excellent strength and toughness. It has high tensile strength and yield strength. It is suitable for high-stress applications such as gears, axles, and shafts. Stainless steel is less strong than 4140 steel, but it is still relatively strong and durable. The strength of stainless steel will vary depending on the particular alloy used and the manufacturing process.

Corrosion resistance

One of the main advantages of stainless steel over 4140 steel is its excellent corrosion resistance. Stainless steel contains chromium, which forms a passivation layer on the surface of the material, protecting it from corrosion. The chromium content of stainless steel varies, with some alloys containing as much as 30%. In contrast, 4140 steel itself is not corrosion resistant and will rust when exposed to moisture or corrosive conditions.

Cost

Generally, stainless steel is more expensive than 4140 steel due to its superior corrosion resistance and the cost of the materials used in its production. However, cost differences may vary depending on the application, volume, and other factors.

Application

4140 steel is commonly used in industrial applications such as gears, shafts, and wheel shafts due to its excellent strength and toughness. It is also used in drilling equipment for the oil and gas industry and components such as crankshafts and connecting rods for the automotive industry. In contrast, stainless steel is typically used in applications that require superior corrosion resistance, such as medical and food processing equipment, chemical processing equipment, and Marine applications.

4140 steel and stainless steel have different properties and characteristics that make them suitable for a variety of applications. While 4140 steel is stronger and more cost-effective than stainless steel, it is not as resistant to corrosion. Stainless steel, by contrast, is more expensive but has superior corrosion resistance, making it suitable for applications in harsh environments. Ultimately, the choice between 4140 steel and stainless steel depends on the specific requirements of the application, including the required strength, corrosion resistance, and cost. (Comparison of 4140 Steel and Stainless Steel)

The Effect of Carbon Content on the Properties of 4140 Steel

4140 steel is a multipurpose alloy steel commonly used in various industrial applications. Its unique combination of strength, toughness, and wear resistance makes it a popular choice for components such as gears, shafts, and wheel shafts. The carbon content of 4140 steel plays an important role in its mechanical properties.

Carbon content and intensity

The carbon content of 4140 steel is between 0.38% and 0.43%. The strength of 4140 steel is proportional to its carbon content. As the carbon content increases, the tensile strength and yield strength of the material also increase. However, an increase in carbon content also leads to a decrease in ductility.

Carbon content and hardenability

Hardenability refers to the ability of a material to harden through heat treatment. The carbon content of 4140 steel plays an important role in its hardenability. As the carbon content increases, so does the hardenability of the material. This is because the carbon atoms in the steel act as hardeners, enabling faster and more uniform quenching during heat treatment.

Carbon content and machinability

Machinability refers to the ease with which a material can be processed using various cutting tools. The carbon content of 4140 steel has a significant influence on its machinability. Lower carbon content leads to better machinability, while higher carbon content leads to reduced machinability.

Carbon content and weldability

Weldability refers to the ability of a material to be welded without compromising its properties. The carbon content of 4140 steel has a great influence on its weldability. Due to the formation of hard and brittle microstructure in the welding process, higher carbon content will result in reduced weldability. However, proper welding techniques and procedures can overcome these problems and ensure that 4140 steel components retain their properties after welding.

The carbon content of 4140 steel plays a crucial role in determining its mechanical properties such as strength, hardenability, machinability, and weldability. While higher carbon content leads to increased strength and hardenability, it also leads to reduced ductility and machinability. Therefore, the desired mechanical properties and the effect of carbon content on these properties should be considered when selecting 4140 steel for specific applications. Understanding the effects of carbon content on 4140 steel can help engineers make informed decisions about material selection and design for a variety of industrial applications.

Failure Analysis of 4140 Steel: Causes, Mechanisms, and Prevention Strategies

Fault analysis is an important aspect of engineering because it helps to understand the causes and mechanisms behind the failure of materials or components. 4140 steel is a high-strength alloy steel commonly used in various industrial applications. However, like any other material, it is prone to failure due to a variety of factors.

Causes of failure of 4140 steel

1. Fatigue failure: 4140 steel often bears the cyclic load, which will lead to fatigue failure. This type of failure occurs when repeated stress is applied, causing cracks to form and propagate, eventually leading to failure.
2. Overload: exceeding the yield strength or ultimate strength of 4140 steel will cause plastic deformation or fracture, respectively.
3. 3, environmental factors: exposure to high temperature, humidity, corrosive chemicals, salt water, and other harsh environment will lead to premature failure of 4140 steel.

The failure mechanism of 4140 steel

1. brittle fracture: 4140 steel under high-stress concentration, low temperature or impact load will occur brittle fracture. In this failure mode, the material suddenly breaks without any apparent deformation, resulting in a catastrophic failure.
2. Ductile fracture: When 4140 steel is subjected to high deformation, ductile fracture occurs, leading to the formation of micropores, which coalesce and grow and eventually lead to failure.

A prevention strategy for the failure of 4140 steel

1. Correct material selection: Choosing the right type and quality of 4140 steel is crucial to prevent failure. Materials should be selected according to application, load conditions, and environmental factors.
2. Design optimization: Component design should be optimized to avoid stress concentration and minimize the possibility of failure. FEA (Finite element analysis) simulations can be used to identify areas of high stress and optimize the design.
3. 3, heat treatment: Appropriate heat treatment of 4140 steel can improve its mechanical properties, including strength and toughness, and reduce the possibility of failure. The heat treatment process should be carefully controlled and monitored to avoid overheating or underheating.
4. Maintenance and inspection: Regular inspection and maintenance of parts made of 4140 steel can help detect any signs of damage or wear before they lead to failure. Proper lubrication, cleaning, and inspection should be performed regularly.

Fault analysis is an important aspect of engineering that helps to determine the causes and mechanisms behind the failure of materials or components. The causes of the failure of 4140 steel may include fatigue, overload, and environmental factors. And the mechanism may be a brittle or ductile fracture. Appropriate material selection, design optimization, heat treatment, and maintenance precautions help reduce the likelihood of failure and ensure the reliable performance of 4140 steel components in a variety of industrial applications. (Failure Analysis of 4140 Steel)
