4Cr13 steel
Description
4Cr13 steel, a martensite stainless steel, has a high hardenability, good polishing properties, excellent resistance to corrosion and hot oxidation [1]. Due to these excellent properties, 4Cr13 stainless steel can be applied in several important fields, such as precision mechanism, structural automotive application, and petrochemical industry. During the manufacturing process, the heat treatment has a significant effect on the mechanical properties of 4Cr13 components. The strength and hardness of 4Cr13 components could remarkably increase after quenching and tempering.
Chemical Composition of 4Cr13 steel
| C | Si | Mn | P | S | Cu |
| 0.36-0.45 | ≤0.60 | ≤0.80 | ≤0.030 | ≤0.030 | – |
| Mo | V | Ni | Cr | W | |
| – | – | ≤0.60 | 12.00-14.00 | – |
4Cr13 steel Range of products
| Product type | Products | Dimension | Processes | Deliver Status |
| Plates / Sheets | Plates / Sheets | 0.08-200mm(T)*W*L | Forging, hot rolling and cold rolling | Annealed, Solution and Aging, Q+T, ACID-WASHED, Shot Blasting |

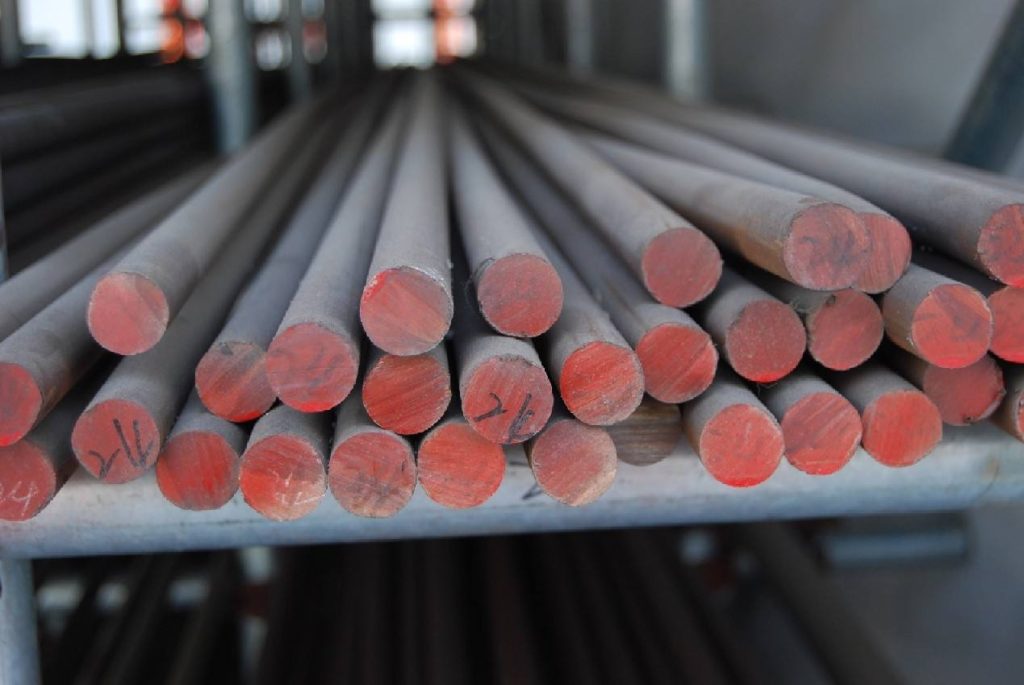

| Steel Bar | Round Bar, Flat Bar, Square Bar | Φ8-1200mm*L | Forging, hot rolling and cold rolling, Cast | Black, Rough Turning, Shot Blasting, |
| Coil / Strip | Steel Coil /Steel Strip | 0.03-16.0x1200mm | Cold-Rolled & Hot-Rolled | Annealed, Solution and Aging, Q+T, ACID-WASHED, Shot Blasting |
| Pipes / Tubes | Seamless Pipes/Tubes, Welded Pipes/Tubes | OD:6-219mm x WT:0.5-20.0mm | Hot extrusion, Cold Drawn, Welded | Annealed, Solution and Aging, Q+T, ACID-WASHED |
Heat Treatment of 4Cr13 steel
1.Annealing
750 to 800°C for about 2 to 5 hours
slow controlled cooling of 10 to 20°C per hour to about 650°C;
further cooling in air, max. 200 HB
2.Hardening
1000 to 1050°C
15 to 30 minutes keeping curing temperature
quenching in oil/compressed gas/hot bath
obtainable hardness: 53 – 56 HRC
3.Tempering
slow heating to tempering temperature immediately after hardening, to 180 to 300 °C depending on desired hardness
1 hour per 20 mm: min. 2 hours
Applications
Used in corrosion resistance, wear resistance of high quality plastic mold.
