36NiCrMo16 Alloy Steel | DIN1.6773

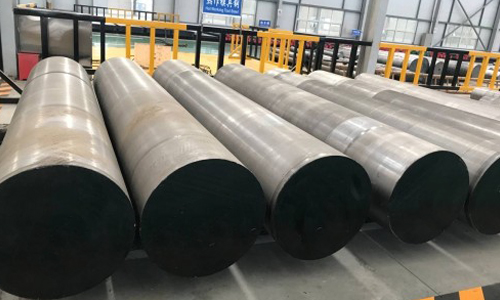

36NiCrMo16 Alloy Steel China supplier and stockholders. OTAI Special steel is 36NiCrMo16 Alloy Steel DIN1.6773 china supplier of in round bar, plate, flat bar, sheet, square, and block.
Description
36NiCrMo16 Alloy Steel is an alloy steel formulated for primary forming into wrought products. Cited properties are appropriate for the quenched and tempered condition. 1.6773 is the EN numeric designation for this material.
36NiCrMo16 Alloy Steel is a quench and tempering special NiCrMo steel, characterized by very high tensile strength together with good toughness. It is usable in the hardened and stress relieved state. It can harden in the air up to thicknesses equal to 90 mm.
36NiCrMo16 Alloy Steel Chemical composition
| C | Si | Mn | Ni | P | S | Cr | Mo |
| 0.32 – 0.39 | max 0.4 | 0.5 – 0.8 | 3.6 – 4.1 | max 0.025 | max 0.025 | 1.6 – 2 | 0.25 – 0.45 |
36NiCrMo16 Equivalent grades
AFNOR 35CND16
BS 835M30
WNR 1.6773
36NiCrMo16 Alloy Steel Heat treatment
Soft Annealing: Heat to 650-680°C, cool slowly. This will produce a maximum Brinell hardness of 269.
Normalizing:Temperature: 850-880°C.
Hardening: Harden from a temperature of 835-865°C, 855-885°C followed by oil or quenching.
Forging
Hot forming temperature: 1050-850°C.
36NiCrMo16 Steel DIN1.6773 Application
It is suitable to the manufacture of components of maximum thickness equal to 300 mm strongly stressed and even with a complicated geometry (shafts, torsion shafts, axles, levers, connecting rods, rocker arms).
1. Low and middle-pressure fluid transportation pipeline
2. Casing pipe
3. Low and medium pressure boiler seamless steel pipe
4.High-pressure boiler seamless steel pipe
5.carbon seamless steel pipe for ship
6.Seamless steel pipe used in high-pressure chemical fertilizer equipment
7.Petroleum and natural gas industry
8.Steel pipe for Heat exchanger
9.Used for diesel engine
10.Chemical industry, building industry, environment industry, etc
