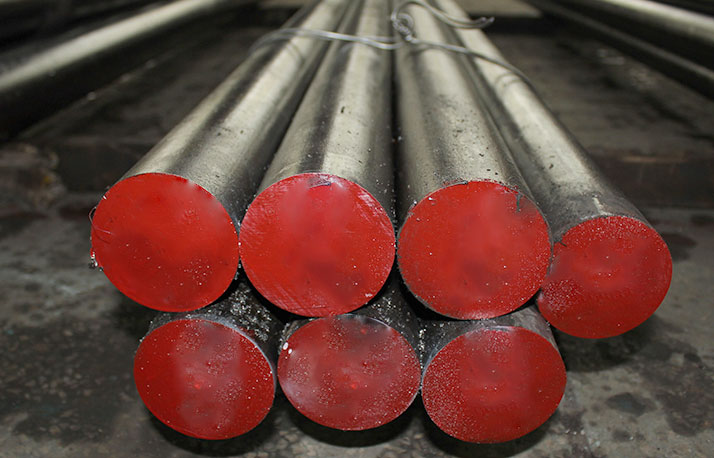

20NiCrMoS6-4 steel DIN 1.6571 steel round bar
Description
20NiCrMoS6-4 steel material china supplier and stockholders. OTAI Special steel is 20NiCrMoS6-4 steel DIN 1.6571 steel china supplier of in round bar, plate, flat bar, sheet, square and block.
Round bar:
Diameter : 1mm-2000mm
Square bar:
Size: 50mm * 50mm-600mm *600mm
Plate steel/flat bar:
Size: Thickness: 0.1mm-800mm Width: 10mm to 1500mm
Tube/pipe:
Size: OD: 6-219mm WT: 1-35 mm.
Cold-rolled sheet:
Thickness: 2-5mm
Width:1000mm
Length: 2000mm
Hot-rolled sheet:
Thickness:6-80mm
Width: 210-610mm
Chemical composition % of steel 20NiCrMoS6-4 (1.6571)
| C | Si | Mn | Ni | P | S | Cr | Mo |
| 0.16 – 0.23 | max 0.4 | 0.5 – 0.9 | 1.4 – 1.7 | max 0.025 | 0.02 – 0.04 | 0.6 – 0.9 | 0.25 – 0.35 |
Mechanical Properties of 20NiCrMoS6-4 steel
|
Properties |
Conditions | ||
| T (°C) | Treatment | ||
| Density (×1000 kg/m3) | 7.7-8.03 | 25 | |
| Poisson’s Ratio | 0.27-0.30 | 25 | |
| Elastic Modulus (GPa) | 190-210 | 25 | |
| Tensile Strength (Mpa) | 1158 | 25 | oil quenched, fine grained, tempered at 425°C |
| Yield Strength (Mpa) | 1034 | ||
| Elongation (%) | 15 | ||
| Reduction in Area (%) | 53 | ||
| Hardness (HB) | 335 | 25 | oil quenched, fine grained, tempered at 425°C |
Forging/hot rolling/ extrusion of steel
Forging: Shafts with flanks/pipes/tubes/slugs/donuts/cubes/other shapes
Finished goods condition: hot forging/hot rolling + annealing/normalizing + tempering/quenching + tempering/any conditions based on the customer’s requirement
Application:
Alloyed case hardening steel for parts with a required core tensile strength of 1000 – 1300 N/mm² and good wearing resistance as boxes, piston bolts, spindles, camshafts, gears, shafts and other mechanical controlling parts.Especially in wheels and stopcock.
Contact
If you have any 20NiCrMoS6-4 steel inquiries and questions for Price, Application, hot treatment, Please don’t hesitate to contact us.
