H11 Tool Steel is a hot work Cr-Mo Alloy tool steel belong to ASTM A681-1999 Steel Grade standard. Special Steel China Supplier and factory Otai Special Steel Supply H11 Tool steel in Round bar, Plate, Flat bar, Square, Forging Ring and others any shape.
1.Supply Form of H11 Tool Steel -ASTM A681 Hot Work Tool Steel
2.Supply Range of SAE H11 Steel

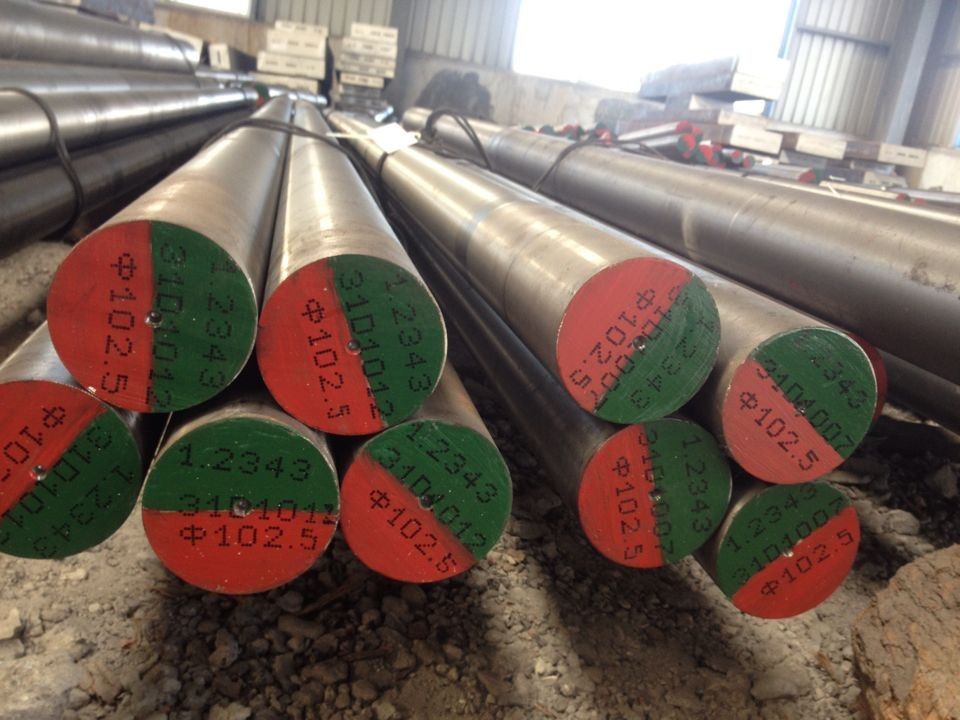

H11 Steel Round Bar: diameter 5mm – 400mm
AISI H11 Steel Plate: thickness 10 –500mm x width 200– 1400mm
SAE H11 Steel Block: 210mm x 500-810mm
3. Chemical Composition of H11 Tool Steel Material
ASTM A681 | C | Si | Mn | P | S | Cr | Mo | V |
H11/T20811 | 0.33~0.43 | 0.80~1.20 | 0.20~0.50 | 0.030 Max | 0.030 Max | 4.75~5.50 | 1.10~1.60 | 0.30~0.60 |
DIN 17350 | C | Si | Mn | P | S | Cr | Mo | V |
1.2343/ X40CrMoV5-1 | 0.36~0.42 | 0.90~1.20 | 0.30~0.50 | 0.030 Max | 0.030 Max | 4.80~5.80 | 1.10~1.40 | 0.25~0.50 |
GB/T 1299 | C | Si | Mn | P | S | Cr | Mo | V |
4Cr5MoSiV | 0.33~0.43 | 0.80~1.20 | 0.20~0.50 | 0.030 Max | 0.030 Max | 4.75~5.50 | 1.10~1.60 | 0.30~0.60 |
JIS G4404 | C | Si | Mn | P | S | Cr | Mo | V |
SKD6 | 0.32~0.42 | 0.80~1.20 | ≤0.50 | 0.030 Max | 0.020 Max | 4.50~5.50 | 1.00~1.50 | 0.30~0.50 |
4. H11 tool Steel Material Equivalent and Related Speciation
USA | German | Japan | China | ISO |
ASTM A681 | DIN 17350 | JIS G4404 | GB/T 1299 | ISO 4957 |
H11 | 1.2343 | SKD6 | 4Cr5MoSiV | 35CrMoV5 |
5. ASTM AISI H13 Tool Steel Material Mechanical Properties
Tensile strength, ultimate (@20°C/68°F, varies with heat treatment): 1590 MPa
Tensile strength, yield (@20°C/68°F, varies with heat treatment): 1380 MPa
Reduction of area (@20°C/68°F): 50%
Modulus of elasticity (@20°C/68°F): 215 GPa
6. Forged of hot work H13 Steel material metal
Pre-Heating to 750℃,Then heat to forged temperature. Soak at 1050-1100 °C , ensure heat thorough. After forging, cool slowly .
7. Heat Treatment of SAE/AISI H11 Steel
- H11 Steel Annealing
Slowly heat to 843℃ – 898℃(1550-1650°F),then slowly Cool to 538℃(1000℉) in heat treatment furnace. Then cool in air. After annealing hardness HBS: 235 Max
- H11 tool Steel Hardening
H11 steel having very high hardenability and should be hardened by cooling in still air. The use of a salt bath or controlled atmosphere furnace is desirable to minimize decarburization, and if not available, pack hardening in spent pitch coke is suggested. The temperature employed is usually 1800°-1850°F, depending on size section.
- Quenching of H11 Steel material
ASTM H11 steel Quenching temperature / ℃ | salt bath furnace: 996
AISI H11 steel Quenching temperature / ℃ | controlled atmosphere furnace: 1010
The heat preservation time/min: 5 ~ 15
Quenching medium: air cooling
- Tempering Of H11 Steel
Tempering temperature / ℃ : 552
After tempering hardness HRC or higher: 52
8. Application of Sae AISI H11 tool Steel
1, Application for Hot Extrusion Mold
As Dies, liners, Die holder Backers, Aluminium Extrusion mould, Copper alloy mold, stainless products mold Etc.
2, Application for Plastic Mold Tool
Like Large Injection molds compression, Thick wall plastic molds, Etc.
9. Quality Assured of Sae H11 Steel
Quality assured by Our ISO 9001:2008 quality management system. Our all H11 tool steel all had by SEP 1921-84 ultrasonic inspection (UT Test). Quality Grade: E/e, D/d, C/c.
If you have any H11 steel inquiry and question for Price, Application, hot treatment, please don’t hesitate contact us.
